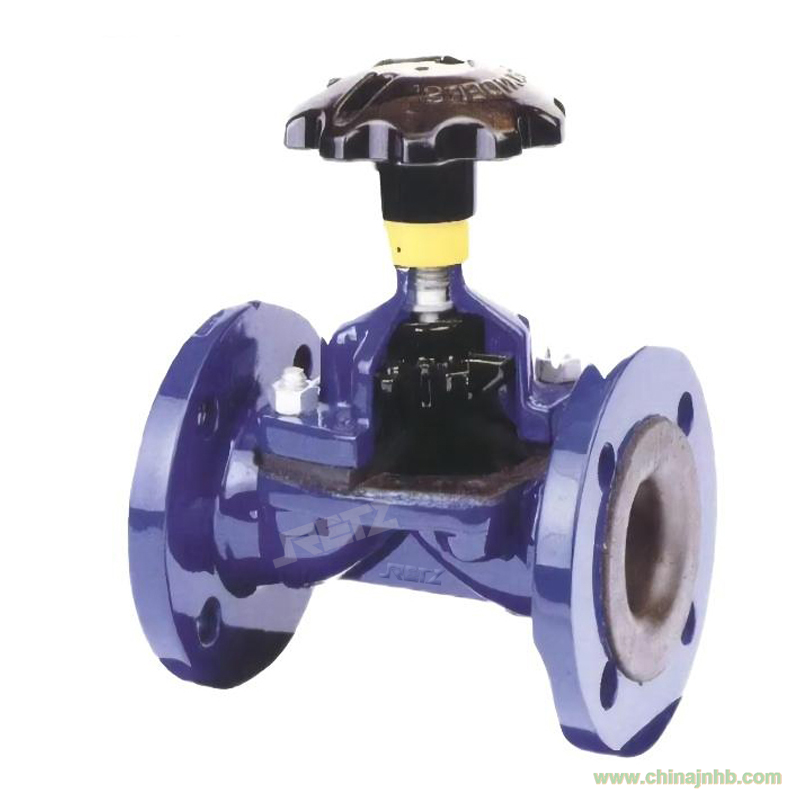

品牌：RETZ瑞茨/我們一直致力于流體控制領域的持續創新，始于2005……進口搪玻璃隔膜閥隔膜采用F46材和橡膠墊制成，可耐各程度濃度酸、堿、鹽類，及有機物料的輸送Retz The imported glass lined diaphragm valve diaphragm is made of F46 material and rubber pad, which can withstand the transportation of various concentrations of acids, alkalis, salts, and organic materials

規格尺寸：1～8”

適用壓力：PN10

適用溫度：0~180℃

控制Control: 手動、氣動、電動Manual, pneumatic, electric

進口搪玻璃隔膜閥主要性能 Main performance

1.搪玻璃隔膜閥隔將含硅量高的瓷釉涂于金屬表面，通過950℃搪燒，使瓷釉密著于金屬鐵胎表面制成。因此，它具有類似玻璃的化學穩定性和金屬強度的雙重優點retz Glass lined diaphragm valve Apply porcelain glaze with high silicon content to the metal surface and enamel it at 950 ℃ to make it tightly adhere to the surface of the metal iron substrate. Therefore, it has the double advantages of chemical stability and metal strength similar to glass

2.工作介質接觸的僅僅是隔膜和閥體，操縱機構與介質通路隔開，不但保證了工作介質的純凈，同時也防止管路中介質沖擊操縱機構工作部件的可能性 The working medium only contacts the diaphragm and valve body, and the control mechanism is separated from the medium path, which not only ensures the purity of the working medium, but also prevents the possibility of medium in the pipeline impacting the working components of the control mechanism

3.閥桿處不需要采用任何形式的單獨密封。所以該閥能理想地控制多種工作介質，膜片常用橡膠、塑料等彈性、耐腐蝕、非滲透性材料制成，尤其適合帶有化學腐蝕性 No separate sealing of any form is required at the valve stem. So this valve can ideally control multiple working media, and the diaphragm is commonly made of elastic, corrosion-resistant, and impermeable materials such as rubber and plastic, especially suitable for chemical corrosiveness

進口搪玻璃隔膜閥技術性能規范 Technical performance specifications

RETZ的隔膜閥可以滿足工控系統的截斷、調節、防腐、粘性流體、纖維質流體、泥漿、污泥、懸浮固態物、衛生潔凈等流體的控制RETZ's diaphragm valve can meet the requirements of industrial control systems for cutting off, regulating, anti-corrosion, viscous fluid, fibrous fluid, mud, sludge, suspended solids, hygiene, and other fluid control

產品涵蓋了：進口氣動隔膜閥、電動隔膜閥、襯膠隔膜閥、襯氟隔膜閥、直通式隔膜閥、角式隔膜閥、美標隔膜閥、德標隔膜閥、日標隔膜閥、英標隔膜閥、搪玻璃隔膜閥、真空隔膜閥、不銹鋼隔膜閥、衛生級隔膜閥、無襯里隔膜閥、PVC隔膜閥、PFA高潔凈氟塑料隔膜閥、高純膜片閥The products cover: imported pneumatic diaphragm valves, electric diaphragm valves, rubber lined diaphragm valves, fluorine lined diaphragm valves, straight through diaphragm valves, angle diaphragm valves, American standard diaphragm valves, German standard diaphragm valves, Japanese standard diaphragm valves, British standard diaphragm valves, glass lined diaphragm valves, vacuum diaphragm valves, stainless steel diaphragm valves, sanitary grade diaphragm valves, unlined diaphragm valves, PVC diaphragm valves, PFA high cleaning fluorine plastic diaphragm valves, high-purity diaphragm valves
