品牌：RETZ瑞茨/我們一直致力于流體控制領域的持續創新，始于2005……

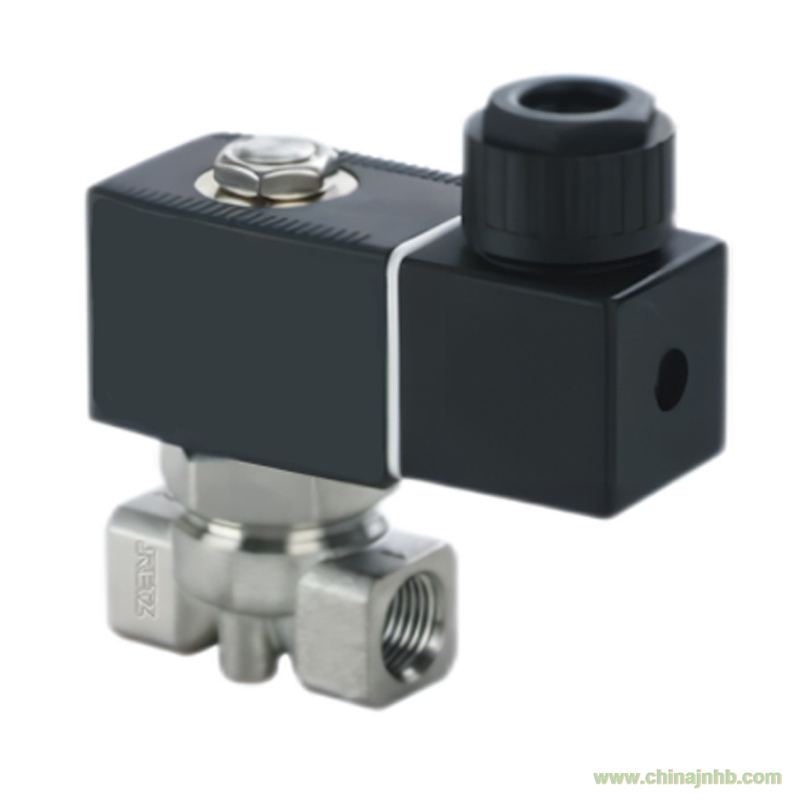

進口微型直動式電磁閥通電時，電磁線圈產生電磁力把關閉件從閥座上提起，閥門打開；
斷電時，電磁力消失，彈簧把關閉件壓在閥座上，閥門關閉
工作原理
working principle
進口微型直動式電磁閥有常閉型常開型二種 retz
There are two types of imported brass and stainless steel micro direct acting
solenoid valves: normally closed and normally open
1.常閉型斷電時呈關閉狀態，當線圈通電產生電磁力，使動鐵芯克服彈簧力和靜鐵芯吸合直接開啟閥口，介質通過；當線圈斷電時電磁力消失，動鐵芯在彈簧力的作用下復位，直接關閉閥口，介質不通。
When
the normally closed type is powered off, it is in a closed state. When the coil
is energized, electromagnetic force is generated, causing the moving iron core
to overcome the spring force and the static iron core to directly open the
valve port, and the medium passes through; When the coil loses power, the
electromagnetic force disappears, and the moving iron core recovers under the
action of spring force Position, directly close the valve port, medium blocked
2.常開型正好相反的工作原理
The
opposite working principle of the normally open type
技術參數
Technical parameter
可按需提供內置過濾網片 Can
provide built-in filter screens as needed
結構簡單，動作可靠，開關速度快，在零壓差和微真空下正常工作
Simple structure, reliable action, fast switching speed, and normal operation
under zero pressure difference and micro vacuum
品牌：RETZ/我們一直致力于流體控制領域的持續創新，始于2005……
動作類型 直動型
控制方式 常閉式(標準)、常開式(可選)
連接口 G(標準)、NPT、Rc(可選)
適用介質 中性介質，氣態或液態流體
流體黏度 ≤21mm2/s
閥體材質 黃銅、不銹鋼
密封 NBR(標準)、FKM、EPDM(可選)
介質溫度 NBR:-10～+80℃
FKM: -10~+110℃
EPDM: -20～+120℃
環境溫度 -10～50℃(防爆型-20℃~40℃)
標準電壓 AC220V(50-60Hz)、DC24V(0Hz)
電壓變化 ±10%
防護等級 IP65
安裝方式 最好使線圈朝上
可選配置 防爆型、降溫節能線圈/接線盒,定時開關、手動裝置
規格尺寸 G1/8-G1/4
適應壓力 0-50Bar
