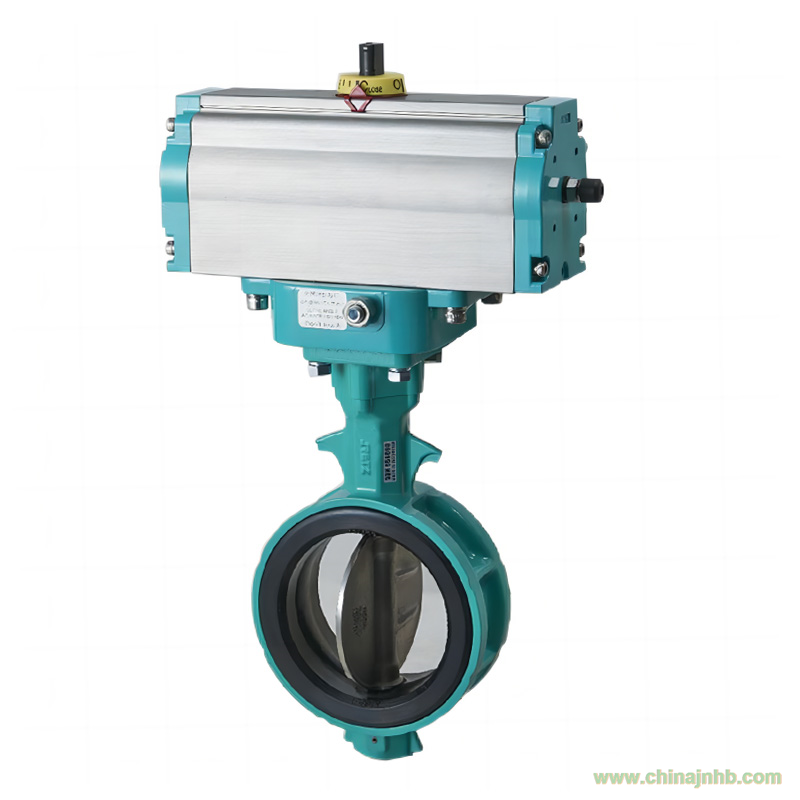

(法蘭，對夾)進口氣動中線軟密封蝶閥適用于溫度≤120℃或≤150℃，公稱壓力≤1.6MPa給排水、污水、食品、供暖、燃?xì)狻⒋啊⑺姟⒁苯稹⒛茉聪到y(tǒng)以及輕紡等行業，特別適用于雙向密封和閥體易銹蝕場合，作調節流量和截流介質(flange,
wafer) imported pneumatic center line soft sealing butterfly valve is suitable
for industries such as water supply and drainage, sewage, food, heating, gas,
shipbuilding, hydropower, metallurgy, energy systems, and light textile with a
temperature ≤ 120 ℃ or ≤ 150 ℃ and a nominal pressure ≤ 1.6MPa. It is
particularly suitable for two-way sealing and valve body corrosion prone
situations, as a flow regulation and interception medium
進口氣動中線蝶閥產品詳情
Product details
(法蘭，對夾)進口氣動中線軟密封蝶閥是以壓縮空氣0.4-0.7MPa的氣源為動力，驅動閥桿帶動帶碟板在閥體內做0-90度的旋轉，達到對蝶閥全開和全關的操作控制 RETZ
(Flange, wafer) The inlet pneumatic midline soft seal butterfly valve is
powered by 0.4-0.7MPa compressed air, which drives the valve stem to drive the
disc plate to rotate 0-90 degrees in the valve body, so as to achieve full
opening and full closing operation control of the butterfly valve
結構特點
Structural characteristics
蝶板的回轉中心(即閥桿的中心)位于閥體的中心線和蝶板的密封面截面上。閥座采用合成橡膠。關閉時蝶板的外圓密封面擠壓合成橡膠閥座，使閥座產生彈性變形而形成彈性力作為密封比壓保證蝶閥的密封 retz品牌The rotary center
of the butterfly plate (i.e. the center of the valve stem) is located on the
centerline of the valve body and the sealing surface section of the butterfly
plate. The valve seat is made of synthetic rubber. When closing, the outer
sealing surface of the butterfly plate squeezes the synthetic rubber valve
seat, which causes the elastic deformation of the valve seat and forms the
elastic force as the sealing specific pressure to ensure the sealing of the
butterfly valve
1、小巧輕便，容易拆裝及維修，并可在任意位置安裝 Small
and light, easy to disassemble and repair, and can be installed at any position
2、結構簡單、緊湊，操作扭矩小，90°回轉開啟迅速 Simple and
compact structure, small operating torque, quick 90 ° rotation and opening
3、流量特性趨直線，調節性能好 Flow
characteristics tend to be straight, with good regulation performance
4、蝶板與閥桿的連接采用無銷釘結構，克服了有可能的內泄漏點 The
connection between the butterfly plate and the valve rod adopts a pin free
structure, which overcomes possible internal leakage points
5、蝶板外圓采用球面造型，提高了密封性能及延長了閥門的使用壽命，帶壓啟閉5萬次以上仍保持零泄漏 The outer circle
of the butterfly plate adopts spherical shape, which improves the sealing
performance and prolongs the service life of the valve. The valve can be opened
and closed under pressure for more than 50000 times without leakage
6、密封件可更換，且密封可靠達到雙向密封 The
sealing element can be replaced, and the sealing is reliable to achieve two-way
sealing
7、蝶板可根據用戶要求噴涂覆層，如尼龍或聚四氟類 The
butterfly plate can be coated according to user requirements, such as nylon or
PTFE
進口氣動中線蝶閥技術參數Technical
Parameters
公稱通徑DN(mm):DN25～1000mm
公稱壓力(MPa):PN1.0、1.6MPa
連接形式:法蘭式、對夾式、凸耳式
閥芯形式:中線蝶板式
密封填料:柔性石墨、聚四氟乙烯
基本誤差:帶定位器：小于全行程的±2%
回差:帶定位器：小于全行程的±2%
控制方式:開關型(開關兩位控制)、調節型(4～20mA控制)
