品牌：RETZ瑞茨/我們一直致力于流體控制和測控領域的持續創新，始于2005……

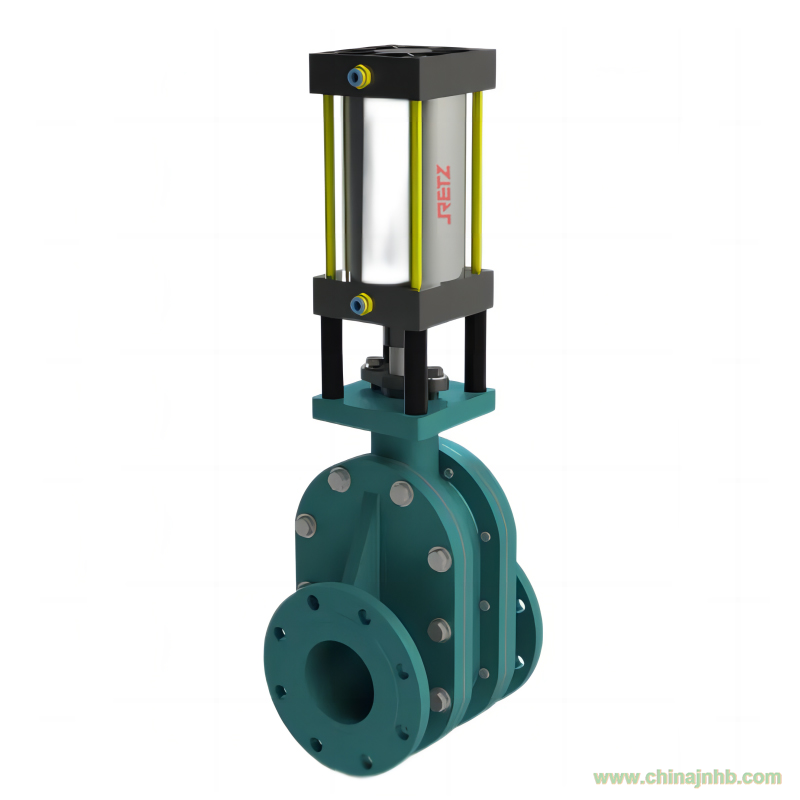

(陶瓷)氣動耐磨雙閘板閘閥采用雙閥板密封，密封面采用硬質合金摩擦副或增韌陶瓷摩擦副結構，耐磨性強，密封性好，無積灰、無卡塞現象

The imported pneumatic wear-resistant double gate valve adopts a double valve plate seal, and the sealing surface adopts a hard alloy friction pair or toughened ceramic friction pair structure, with strong wear resistance, good sealing performance, and no dust accumulation or jamming phenomenon

進口氣動陶瓷雙閘板閘閥性能參數 Performance description

采用雙閘板結構，可雙面密封或單側密封 Double ram structure is adopted, which can be sealed on both sides or on one side

獨特的單側閥板開孔技術，更利于大顆粒物料輸送 The unique single side valve plate opening technology is more conducive to the transportation of large particles

密封填料采用耐磨耐高溫氟橡膠密封組件，耐溫高達450度 The sealing filler is made of wear-resistant and high temperature resistant fluororubber sealing components, and the temperature resistance is up to 450 degrees

密封面采用耐磨硬質合金材料或耐磨增韌結構陶瓷，硬度可達60~70HRC retz品牌 The sealing surface is made of wear-resistant cemented carbide or wear-resistant toughened structural ceramics, with hardness up to 60~70HRC

密封面采用全陶瓷或全合金覆蓋，耐磨面積提高200-300%，使用壽命提高3-5倍 The sealing surface is covered with all ceramics or all alloys, the wear resistance area is increased by 200-300%, and the service life is increased by 3-5 times

進口氣動耐磨雙閘板閘閥技術參數Technical Parameters

公稱壓力（Nominal Pressure）∶1.0MPa

密封試驗（Leakage test pressure）∶1.1MPa

介質溫度（Temperature）∶≤200℃，≤450℃

強度試驗（Maximum test pressure）∶1.5MPa
