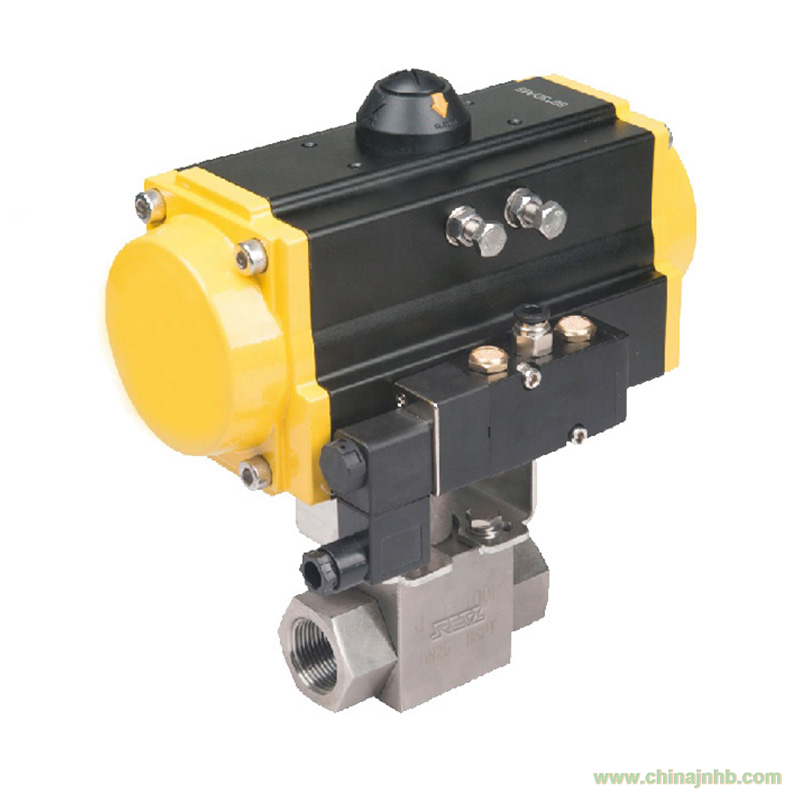

(法蘭，內螺紋)氣動高壓球閥主要用于截斷或接通管路中的介質，亦可用于流體的調節與控制，結構緊湊，密封可靠，密封面與球面常在閉合狀態，不易被介質沖蝕，易于操作和維修，適用于水、溶劑、酸和天然氣等一般工作介質The
imported pneumatic high-pressure ball valve (flange, internal thread) is mainly
used to cut off or connect the medium in the pipeline, and can also be used for
fluid regulation and control. It has a compact structure, reliable sealing, and
the sealing surface and spherical surface are often in a closed state, not
easily eroded by the medium, easy to operate and maintain, suitable for general
working media such as water, solvent, acid, and natural gas
進口氣動高壓球閥產品詳情
Product details
(法蘭，內螺紋)氣動高壓球閥旋轉控制芯軸使球體從開啟位置切換到關閉位置，系統壓力將球體推向密封碗的無壓制側并無泄漏地切斷液流 RETZ (Flange, internal thread) The inlet pneumatic
high-pressure ball valve rotates the control spindle to switch the ball from
the open position to the closed position, and the system pressure pushes the
ball to the non pressing side of the sealing bowl to cut off the liquid flow
without leakage
進口氣動高壓球閥性能參數
Performance description
|
公稱通徑 DN(mm)
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
|
閥體形式
|
整體鍛造閥體(DN50以內)、三段式鍛造閥體(DN50以上)
|
|
公稱壓力
|
PN16.0、25.0 、32.0MPa；ANSI 150、300、600、900、1500LB
|
|
連接形式
|
法蘭式、焊接式、螺紋式(適用于PN45MPa以內)
|
|
密封填料
|
V型聚四氟乙烯填料、柔性石墨填料等
|
|
閥芯形式
|
O型球體閥芯
|
|
流量特性
|
近似快開特性
|
|
動作范圍
|
0～90°、0～360°
|
|
泄露量Q
|
按GB/T4213-92，小于額定KV0.01%
|
|
基本誤差
|
帶定位器：小于全行程的±2%
|
|
可調范圍
|
250：1
|
|
配置執行機構
|
AT、AR、AW系列單雙作用氣動執行器
|
|
控制方式
|
開關兩位控制能、4～20mA模擬量信號控制
|
進口氣動高壓球閥特點Characteristic
全流量流通，啟閉迅速,從全開到全關只要旋轉90° Full flow
circulation, quick opening and closing, and 90 ° rotation from full opening to
full closing
流體阻力小，全通徑的球閥基本沒有流阻 The fluid resistance is small, and the full
bore ball valve basically has no flow resistance
耐高壓，啟閉迅速,扭矩低，無泄漏，不需要手工重調密封件 High
pressure resistance, quick opening and closing, low
緊密可靠,密封面材料為PTFE，密封性好，能實現完全密封。在真空系統中也已廣泛使用 Tight
atorque, no leakage, no need to manually readjust the sealsnd reliable, the
sealing surface material is PTFE, with good sealing performance, and can
achieve complete sealing. It has also been widely used in vacuum systems
在全開或全閉時，球體和閥座的密封面與介質隔離，介質通過時，不會引起閥門密封面的侵蝕 When the valve is fully opened or closed, the
sealing surfaces of the ball and valve seat are isolated from the medium. When
the medium passes through, it will not cause erosion of the valve sealing
surface
進口氣動高壓球閥執行器參數
Actuator parameters
|
執行器形式
|
AT、AR、AW系列單雙作用氣動執行器
|
|
供氣壓力
|
0.4～0.7MPa
|
|
氣源接口
|
G1/4"、G1/8"、G3/8"、G1/2"
|
|
環境溫度
|
-30～+70℃
|
|
作用形式
|
單作用執行機構：氣關式(B)--失氣時閥位開(FO)；氣開式(K)--失氣時閥位關(FC)
雙作用執行機構：氣關式(B)--失氣時閥位保持(FL)；氣開式(K)-- 失氣時閥位保持(FL)
|
|
可配附件
|
定位器、電磁閥、空氣過濾減壓器、保位閥、行程開關、閥位傳送器、手輪機構等
|
技術規范
Technical specifications
設計標準：HG/T、3704,GB/T 12237、API 6D
結構長度：HG/T、3704,GB/T 12221、ASME、B16.10
法蘭形式尺寸：HG/T、20592,GB/T 9119、ASME B16.5,JIS
B2220
檢驗與試驗：GB/T
13927,JB/T 9092、API
598
公稱壓力(MPa)：1.6、150Lb
適用溫度(℃)：GXPO:-10~80℃ FEP:-30~150℃
PFA:-30~200℃
