品牌：RETZ瑞茨/我們一直致力于流體控制和測控領域的持續創新，始于2005……
一勞永逸，事實證明RETZ角座閥工作壽命超過一百萬次 Once and for
all, it has been proven that the RETZ angle seat valve has a service life of
over one million times

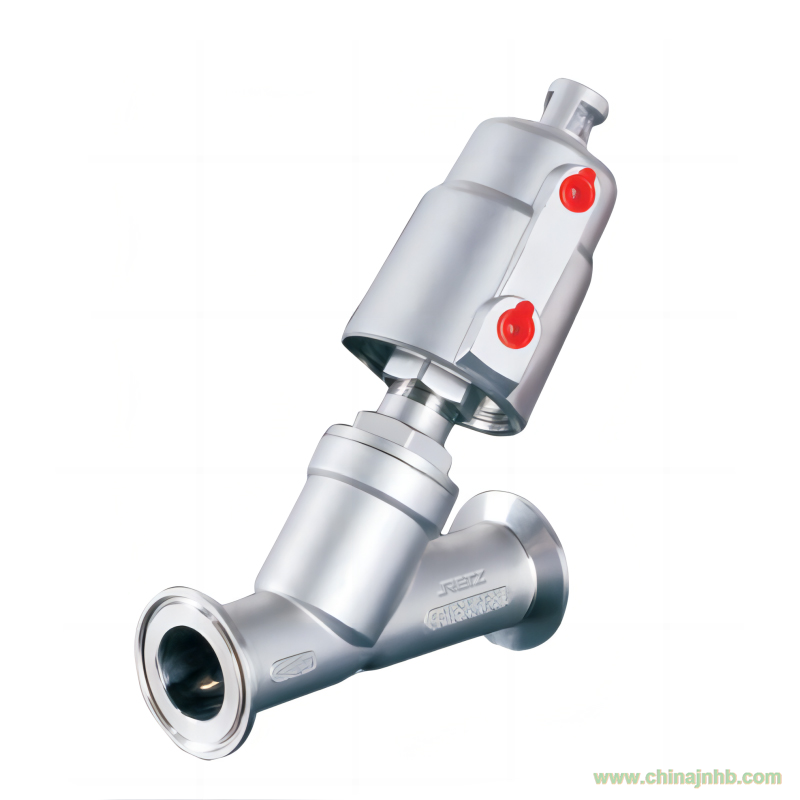

氣動角座閥用于短時間頻繁啟動,反應靈敏，大流量，無噪聲、無水錘,保持高流速,能夠節省空間,它采用氣動執行機構來操作的導向角座閥來實現開關 The
pneumatic angle seat valve is used for frequent start-up in a short time, with
sensitive response, high flow rate, no noise, no water hammer, maintaining high
flow rate, and can save space. It uses a guided angle seat valve operated by a
pneumatic actuator to achieve opening and closing
進口卡箍式氣動角座閥工作原理
Working principle
在非工作的狀態時，由于彈簧力作用，閥門常閉（開）
當執行器活塞唄壓縮氣體作用時，閥門打開（關閉）
進口卡箍式氣動角座閥特點Characteristics
of pneumatic flange angle seat valve
自動調節雙層填料密封蓋Self-adjusting,double
packing glands.
加長防錘形導向和防塵密封圈Extended
spindle guideand wiper seal.
易安裝，汽控接口可在360°上任意選定位置Easy to install
Motor control interface on the 360°Random designation position
無水擊作用(流向閥座下)Water
hammer-free(Flow below seat)
比截止閥高50%的流速 50% higher flow
ratesthan the Global valves
配有長壽活塞環的免修執行器
Maintenance-free actuatorWith long-life piston ring
開啟時無振動，比普通閥減少40%的用氣量 Shock free
opening With 40% less alr consumption
進口卡箍式氣動角座閥參數
閥體材質：304/316
氣缸材質：PAC（聚酰胺）、304
閥芯密封：PTFE、FKM
閥門的工作壓力應位于
0~16/25Bar ，（蒸汽介質在 180℃C時，工作壓力為0~10 Bar)
介質溫度∶ -10℃
~180℃
介質粘度∶≤600cst（mm2/s）
典型應用--
食品和飲料流水線 Food
and beverage
可控介質比如：空氣，水，高達180℃蒸汽，堿性溶液和真空Processing
industries control of mediumssuch as air, water, steam up to 180℃, lye,vacuum
紡織印染和漂白
Textile dyeing and bleaching
可控水，高達180℃的蒸汽，蘇打液 Control of
water, steam up to 180℃Corium hypochlorite
醫院和制藥工業消毒高壓滅菌器Sterilizers
and auto-claves for hospitals and the pharmaceutical industry
可控蒸汽高達180℃的水 Control of
steam,hot water up to 180℃
洗衣
Laundries
可控水，蒸汽，洗滌劑
Control of water, steam, washing agents
工業洗滌設備和溶解設備
Control of solvents, steam, vacuum
可控溶劑，蒸汽和真空
Industrial washing equipmentand solvent recovery systems
機械制造
Machine tools
可控冷卻液 Control of coolant agents
