品牌：RETZ瑞茨/我們一直致力于流體控制和測控領域的持續創新，始于2005……氣動角座閥是指利用執行器活塞來提供線性作用力推動閥芯離開閥座的一種氣控閥門。角座閥尤其適用于高溫且流量要求較大的流體環境下，如蒸汽或者水。角座閥中某些型號，如果反向安裝，運行時會克服水錘作用 retz Pneumatic angle
seat valve refers to a type of pneumatic valve that uses the actuator piston to
provide linear force to push the valve core away from the valve seat. Corner
seat valves are particularly suitable for fluid environments with high
temperatures and high flow requirements, such as steam or water. Some models of
angle seat valve will overcome Water hammer during operation if installed in
reverse direction

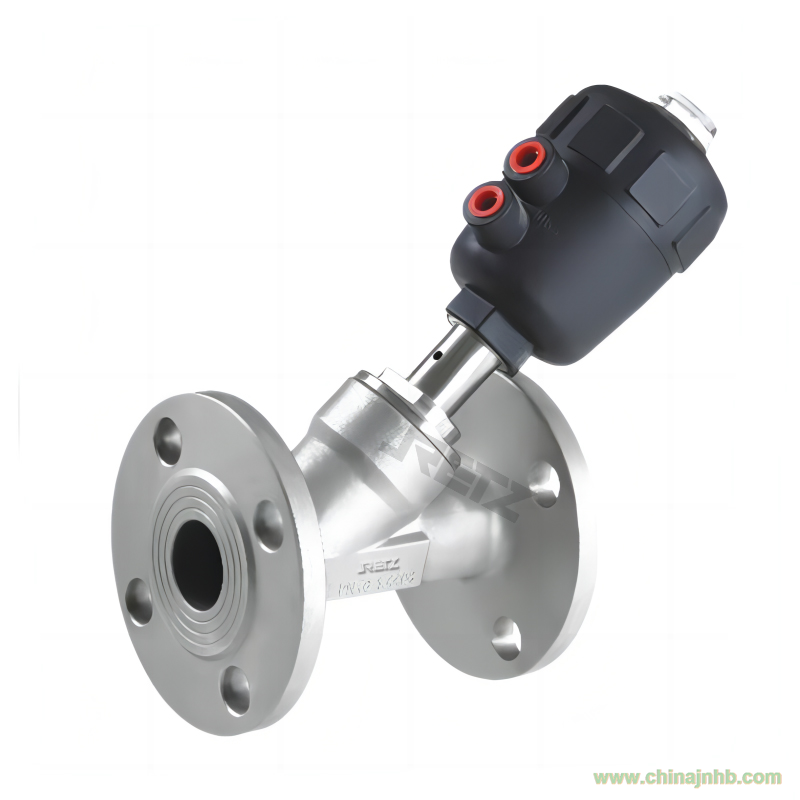

進口氣動法蘭角座閥產品詳情product details
可以在任何方向安裝∶橫向，縱向，傾斜。
雙動型和單動型產品能提供的口徑規格從3 /8 英寸到4
英寸，可從阻塞錘上下兩端關閉，而單動型閥門從阻塞錘下端開啟
進口氣動法蘭角座閥工作原理 working principle
1.單作用：由一個二位三通電磁閥控制。導向介質壓力進入執行器，作用于活塞，使閥芯穿梭于閥腔中實現打開或關閉閥門。閥芯復位通常是借助于氣動執行器中的彈回彈簧來完成。Single acting:
controlled by a two position three-way solenoid valve. The pressure of guiding
medium enters the actuator and acts on the piston to make the valve core
shuttle in the valve chamber to open or close the valve. The valve element
reset is usually completed by means of the spring in the pneumatic actuator.
雙向常閉（N.C.）Two
way normally closed (N.C.)介質從閥芯下方流入，可避免水錘作用。介質在閥芯上方流入，將受到水錘擠壓;The medium flows
under the valve core to avoid the action of water hammer. If the medium flows
above the valve core, it will be squeezed by water hammer;
常閉型（N.C.）介質從閥芯上方流入，介質從閥芯上方流入會造成"水錘"效應Normally
closed (N.C.) medium flows from above the valve core, which will cause
"water hammer" effect
常開型（N.O.）介質從閥芯下方流入Normally
open (N.O.) medium flows from below the valve core
2.雙作用：配置的閥門中，沒有彈回彈簧，導向介質既用來打開閥門，也用來關閉閥門。
Double
acting: there is no spring in the configured valve, and the guiding medium is
used to open and close the valve.
進口氣動法蘭角座閥參數：
管道壓力：Max 1.6MPa(232psi)
控制壓力：0.3-0.8MPa(43.5-116psi)
控制介質：中性氣體或空氣Neutral，gas,
Air
閥體材料：CF8M/CF8
密封材料：PTFE、PPL
氣缸材料：CF8、聚酰胺PA、鋁合金
氣缸尺寸：40mm,50mm,63mm,90mm,125mm
適用介質: 水、酒精、油、染料、蒸汽、中性氣體或液體、有機溶劑、酸堿溶液
介質粘度 :
Max 600mm2/s
介質溫度: -10℃—+180℃,25℃—+220℃
環境溫度: -10℃—+80℃
控制形式: 單作用常閉、常開、雙作用常閉、雙作用自由態
連接形式: 螺紋式(BSP,BSPT,NPT),焊接式，法蘭式，快裝式
