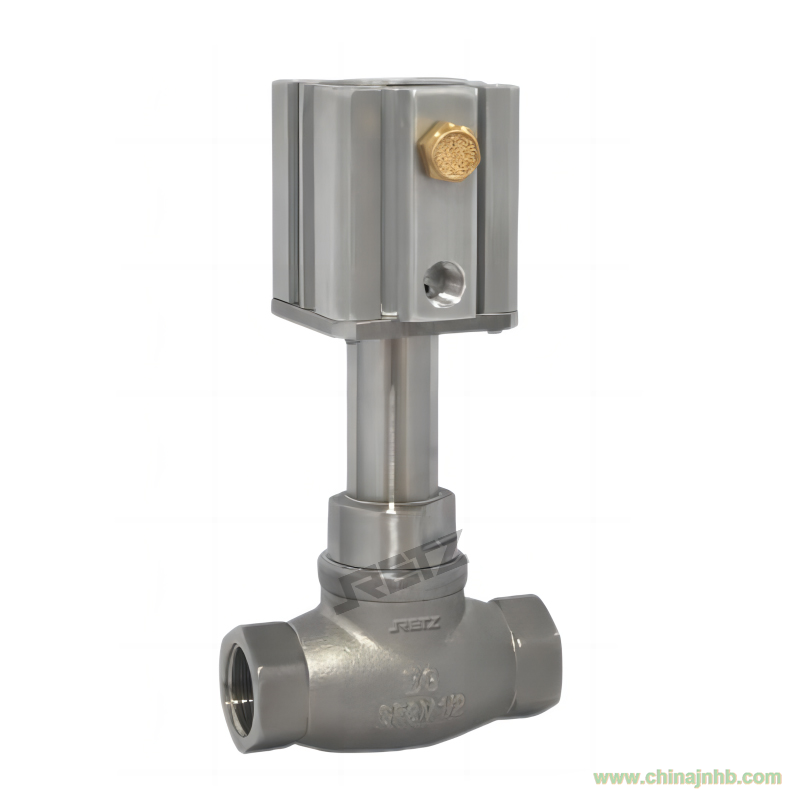

品牌：RETZ/我們一直致力于流體控制和測控領域的持續創新，始于2005……氣動絲扣截止閥通過壓縮空氣控制閥的開關；體積小，耗氣量小，獨特的密封結構，防止系統流體與氣動執行機構氣源混合 The pneumatic screw thread shut-off valve is controlled by the switch of the compressed air control valve; Small size, low air consumption, unique sealing structure, preventing system fluid from mixing with pneumatic actuator air source

進口氣動絲口截止閥特點

通過壓縮空氣控制閥門的開關 Switch of valve is controlled by compressed air

頂部帶閥位指示，也可配閥位電信號開關 The top is equipped with valve position indication, or valve position electrical signal switch

進口氣動絲口截止閥技術參數 Technical parameter

閥體材質：不銹鋼 304/CF8

閥桿材質：不銹鋼 304

閥瓣材質：PTFE

填料密封：PTFE

開關形式：常閉式 NC(通壓縮空氣開，彈簧關閉)

         常開式 NO(通壓縮空氣關，彈簧打開)

壓縮空氣壓力：4～8bar

介質溫度：-40℃～+180℃

環境溫度：-20℃～+80℃

規格尺寸：G1/2-G1-1/2

公稱壓力：10bar

進口氣動絲口截止閥應用 Application

適用介質：可用于空氣、蒸汽等氣體、水、導熱油等液體 Applicable medium: can be used for air, steam and other gases, water, heat transfer oil and other liquids
