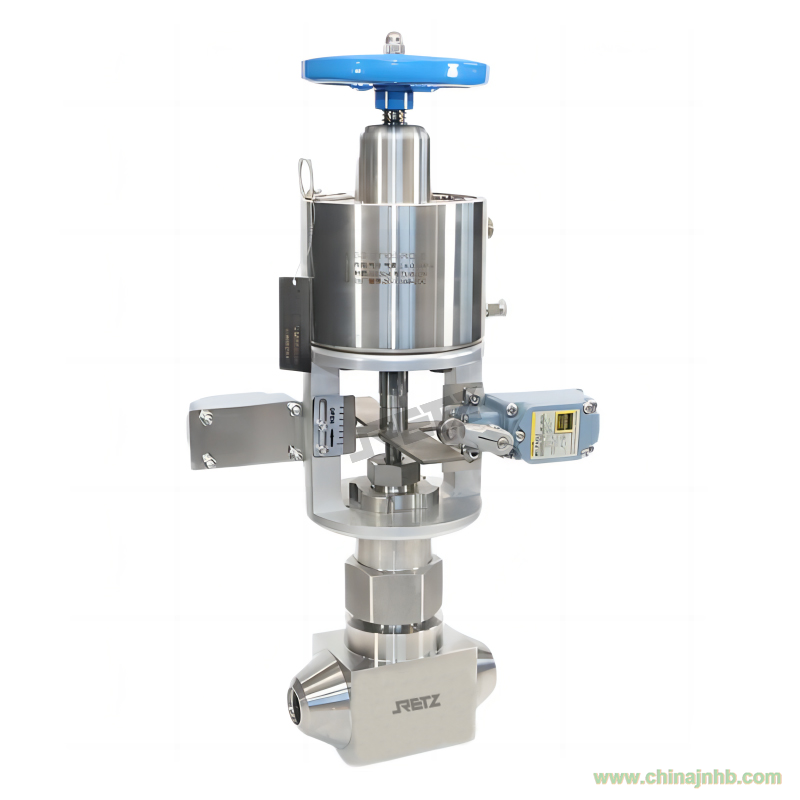

品牌：RETZ/我們一直致力于流體控制和測控領域的持續創新，始于2005……進口氣動針型閥采用兩截閥桿設計，上閥桿螺紋的潤滑脂與系統介質隔離，旋轉的下閥桿上下運動代替旋轉升降，減低每個過程對填料的磨擦，減少閥座和閥頭之間的咬合，閥門在全開位置具有背密封功能，確保工作狀態下不會發生泄漏，在相應的溫度下密封件不會發生密封不嚴retz The pneumatic needle valve adopts a two section valve stem
design. The lubricating grease on the upper valve stem thread is isolated from
the system medium. The rotating lower valve stem moves up and down instead of
rotating up and down, reducing the friction of the packing during each process
and the bite between the valve seat and the valve head. The valve has a back
sealing function in the fully open position, ensuring that there is no leakage
during operation and that the sealing element does not leak tightly at the
corresponding temperature
進口氣動針型閥特點 Characteristic
通過壓縮空氣控制閥門的開關 Switch of
valve is controlled by compressed air
開關壽命長，尺寸緊湊 Long service
life and compact size
PTFE 密封，可用于水、油等與閥門材質相容的液體或氣體 PTFE seal can be used for water, oil and other liquids or gases
compatible with valve materials
頂部帶閥位指示 Valve position
indication on the top
進口氣動針型閥技術參數
介質溫度：-30℃～+600℃
公稱壓力：≤3000-10000psi
環境溫度：-30℃～+80℃
閥體材質：不銹鋼 316L
氣缸材質：鋁合金
連接方式：內螺紋（G、NPT），焊接，卡套 ，
規格尺寸：1/4-1/2”
填料密封：PTFE、PEEK、石墨
開關形式：常閉式 NC(通壓縮空氣開，彈簧關閉)
常開式 NO(通壓縮空氣關，彈簧打開)
壓縮空氣壓力：4～8bar
