品牌：RETZ/瑞茨我們一直致力于流體控制和測控領域的持續創新，始于2005……

淹沒式電磁脈沖閥亦稱亦稱嵌入閥，受脈沖控制儀輸出信號的控制，對濾袋逐排(室)噴吹清灰，使除塵器的阻力保持在設定的范圍之內，以保證除塵器的處理能力和收塵效率。它直接安裝在氣包上，具有更好的流通特性。壓力損失有所下降，適合于氣源壓力較低的工作場合。

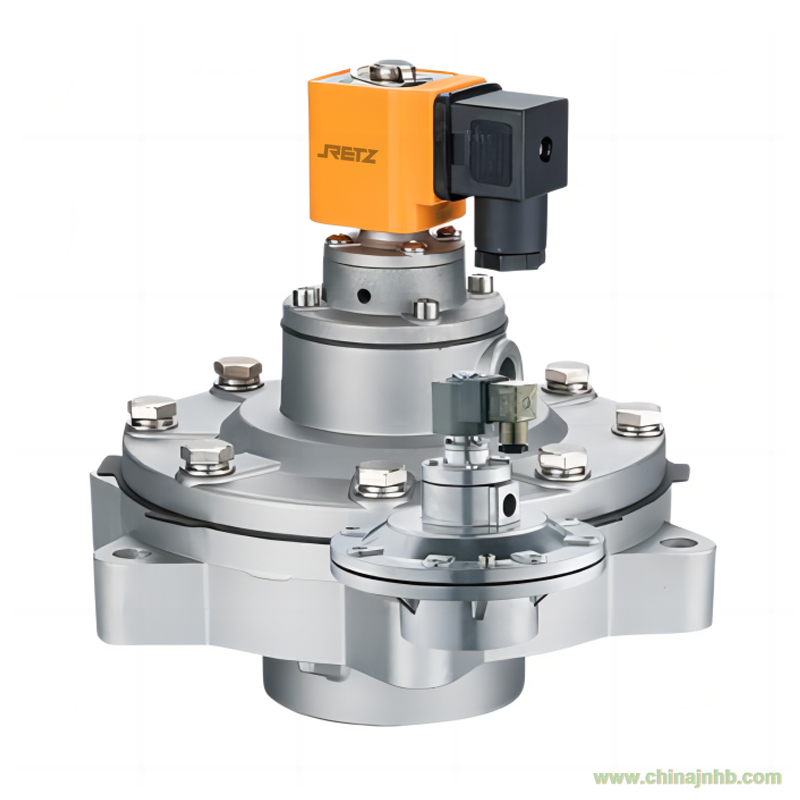

RETZ The submerged Electromagnetic pulse valve, also known as the embedded valve, is controlled by the output signal of the pulse controller to spray the filter bags row by row (room) to clean the dust, so as to keep the resistance of the dust remover within the set range, so as to ensure the processing capacity and dust collection efficiency of the dust remover. It is directly installed on the air bag and has better flow characteristics. The pressure loss has decreased, making it suitable for workplaces with low air supply pressure.

工作原理：

當接通壓縮空氣后，壓縮空氣通過節流孔進入后氣室，此時后氣室壓力將膜征緊貼閥的輸出口，電磁脈沖閥處于"關閉"狀態。

脈沖控制儀的電信號使沖閥銜鐵移動，閥后后室放氣孔打開，后氣室迅速失壓。膜片后移，壓縮空氣通過閥輸出口噴吹。脈沖處于“開啟”狀態。

進口淹沒式電磁脈沖閥材質說明/Material Construction

閥體Body：ADC12鋁合金 ADC12 die cast

先導組件Armature：430FR不銹鋼等材料 430FR stainless steel

膜片Diaphragm：丁晴橡膠或氟橡膠 Nitrile or Viton

彈簧Spring：321不銹鋼 321stainless steel

緊固件Fasteners：302不銹鋼 302stainless steel

進口淹沒式電磁脈沖閥技術參數Technical Parameter

接口形式Joint Form：淹沒Embedded

設計壓力Design Pressure：0.2~0.8MPa

工作壓力Working Pressure：0.2~0.6MPa

環境溫度Ambient Temperature：常溫：-25~60℃低溫高溫可定制Customized for Lower or Higher Temperature

相對濕度Relative Humidity：≤85%

使用介質Working Medium：清潔空氣Clean Air

電壓Voltage：AC220VIAC110V/AC24V/DC24V/DC12V Customized

防護等級Protection Class：IP65

RETZ電磁脈沖閥是一種專為布袋式除塵器配套使用而設計的專用電磁閥，產品函蓋了直角式電磁脈沖閥、淹沒式電磁脈沖閥、直通式電磁脈沖閥、氣控脈沖閥、活塞式電磁脈沖閥、防爆系列脈沖閥等多種規格
