品牌：RETZ瑞茨/我們一直致力于流體控制和測控領域的持續創新，始于2005……

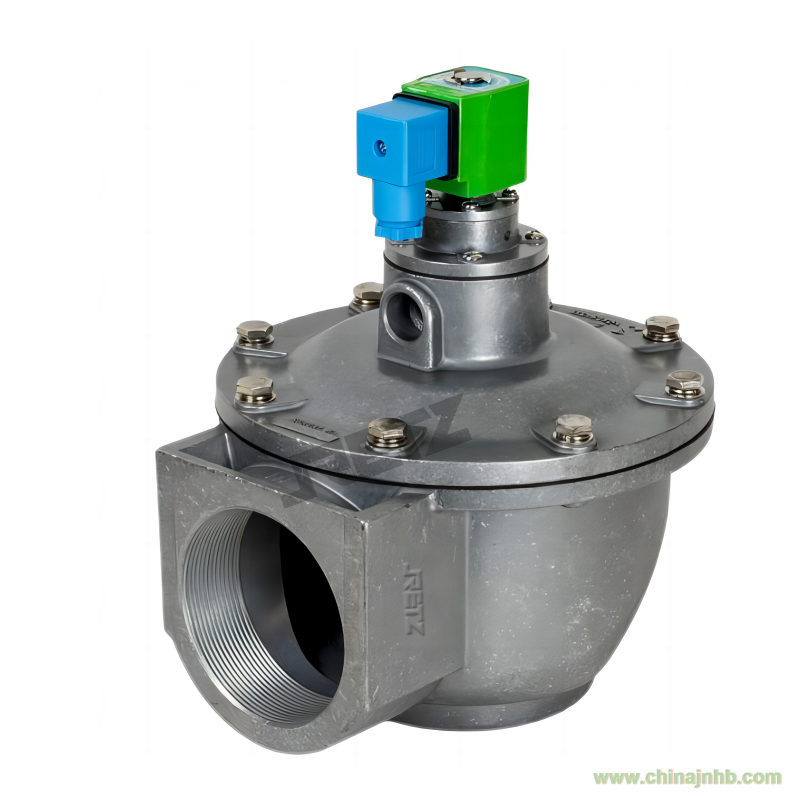

直角式電磁脈沖閥亦稱直角式隔膜閥，為Z型流道，其進出口之間夾角為90°,是脈沖袋式除塵呂清灰噴吹系統的壓縮空氣“開關”。適用于氣包與噴吹管之間的鏈接，保證氣流暢通，能提供符合要求的清灰氣脈沖RETZ Right angle Electromagnetic pulse valve, also known as right angle diaphragm valve, is a Z-type flow channel, with an included angle of 90 ° between the inlet and outlet. It is the compressed air "switch" of the pulse bag type dust removal and dust cleaning injection system. Suitable for the connection between the air bag and the blowing pipe, ensuring smooth airflow and providing satisfactory cleaning air pulse

工作原理：

膜片把電磁脈沖閥分成前、后二個氣室，當接通壓縮空氣后，壓縮空氣通過節流孔進入后氣室，此時后氣室壓力將膜征緊貼閥的輸出口，電磁脈沖閥處于"關閉"狀態。脈沖控制儀的電信號使沖閥銜鐵移動，閥后后室放氣孔打開，后氣室迅速失壓。膜片后移，壓縮空氣通過閥輸出口噴吹。脈沖處于“開啟”狀態。脈沖噴吹控制儀電信號消失，電磁脈沖閥銜換復位，后氣室放氣孔關閉，后氣室壓力升高使膜片緊貼閥出口，電磁脈沖閥又處于“關閉”狀態。

進口直角式電磁脈沖閥材質說明/Material Construction

閥體Body：ADC12鋁合金 ADC12 die cast

先導組件Armature：430FR不銹鋼等材料 430FR stainless steel

膜片Diaphragm：丁晴橡膠或氟橡膠 Nitrile or Viton

彈簧Spring：321不銹鋼 321stainless steel

緊固件Fasteners：302不銹鋼 302stainless steel

進口直角式電磁脈沖閥技術參數Technical Parameter

接口形式Joint Form：直角Right angle

設計壓力Design Pressure：0.2~0.8MPa

工作壓力Working Pressure：0.2~0.7MPa

環境溫度Ambient Temperature：常溫：-25~60℃低溫高溫可定制Customized for Lower or Higher Temperature

相對濕度Relative Humidity：≤85%

使用介質Working Medium：清潔空氣Clean Air

電壓Voltage：AC220VIAC110V/AC24V/DC24V/DC12V Customized

防護等級Protection Class：IP65

RETZ電磁脈沖閥是一種專為布袋式除塵器配套使用而設計的專用電磁閥，產品函蓋了直角式電磁脈沖閥、淹沒式電磁脈沖閥、直通式電磁脈沖閥、氣控脈沖閥、活塞式電磁脈沖閥、防爆系列脈沖閥等多種規格
