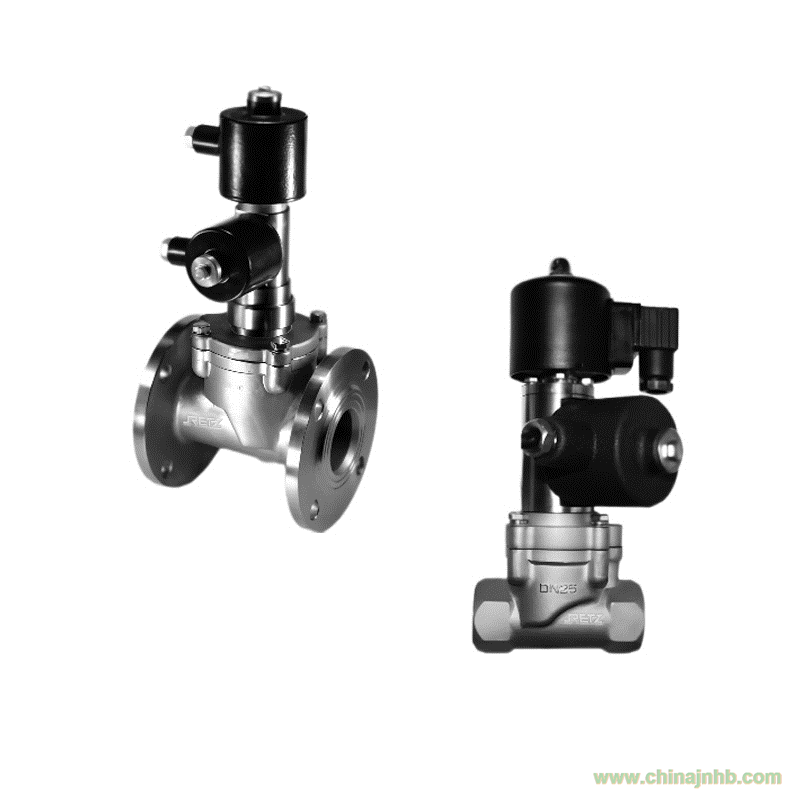

品牌：RETZ瑞茨/我們一直致力于流體控制領域的持續創新，始于2005……進口雙線圈自保持電磁閥節能為雙線圈控制，一個線圈瞬間通電后關閉電源、閥打開，另一個線圈瞬間通電后關閉電源、閥關閉。可以長時間保持關閉或打開狀態，線圈壽命更長。適用于電能源有限的工況和介質為高溫的管道retz The
energy-saving of the dual coil self holding solenoid valve is controlled by the
dual coil. One coil is momentarily powered on and turns off the power and opens
the valve, while the other coil is momentarily powered on and turns off the
power and closes the valve. Can be kept closed or open for a long time,
resulting in longer coil life. Suitable for working conditions with limited
electrical energy and pipelines with high temperature medium
進口雙線圈自保持電磁閥工作原理
working principle
A：當1號線圈瞬間通電后斷電，電磁閥打開 When
the coil 1 after the moment electricity power,electromagnetic valve is opened
B：當2號線圈瞬間通電后斷電，電磁閥關閉
Moment when the coil 2 is powered electricity,electromagnetic valve closed
進口雙線圈自保持電磁閥技術參數
原理結構：自保持式分步活塞式、一步活塞式
Principle and structure: self holding split piston type, one-step piston type
規格尺寸：1/2~8"
Specification and size: 1/2-8“
環境溫度：-10~+50℃
Environmental temperature: -10~+50 ℃
電源電壓supply
voltage：AC380V、AC220V、AC127V、AC36V、AC24V、DC220V、DC110V、DC36V、DC24V、DC12V
流體介質：水、氣、油等 Fluid
medium: water, gas, oil, etc
流體溫度Fluid
temperature：>-60℃、>-40℃、<+60℃、<+120℃、<+200℃
流體壓力fluid
pressure：0-6.4MPa
連接方式：螺紋、法蘭、
Connection method: thread, flange
接線方式：塑封線盒插頭、鐵罩引線
Wiring method: plastic sealed wire box plug, iron cover lead
閥體材質：不銹鋼（304、316、316L）Valve body
material: stainless steel (304, 316, 316L)
