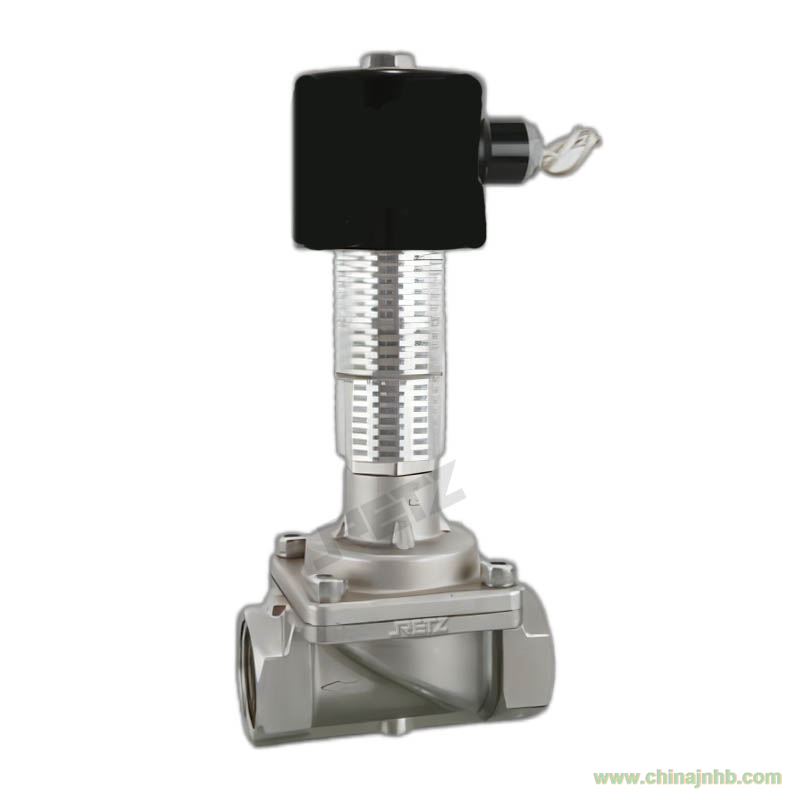

品牌：RETZ瑞茨/我們一直致力于流體控制領域的持續創新，始于2005……進口高溫電磁閥為先導活塞式結構,采用杠桿散熱功能，原理保證線圈和閥體徹底隔離，提高了使用溫度，廣泛應用于吹瓶機械、空壓機、加濕設備、高溫高壓場合、中高溫熱水、中高溫導熱油、高溫蒸汽、過熱蒸汽等、電站抽氣管道疏水系統和蒸發器的排氣需要高溫控制的系統中The RETZ high-temperature electromagnetic valve is a pilot piston type structure that uses a lever heat dissipation function to ensure complete isolation between the coil and valve body, increasing the operating temperature. It is widely used in bottle blowing machinery, air compressors, humidification equipment, high-temperature and high-pressure occasions, medium to high temperature hot water, medium to high temperature heat transfer oil, high-temperature steam, superheated steam, etc., as well as in systems that require high-temperature control for the drainage system of power station extraction pipelines and the exhaust of evaporators

進口高溫電磁閥工作原理--Working principle of imported high-temperature solenoid valve

常閉式：當線圈通電時，先導閥芯吸合，先導孔打開，閥上腔卸壓，活塞靠下腔介質壓力推動，電磁閥打開。 當線圈斷電時，先導閥芯靠彈簧復位，先導孔關閉，閥上腔由活塞節流孔增壓和復位彈簧的推力，電磁閥關閉。

Normally closed: When the coil is energized, the pilot valve core is closed, the pilot hole opens, the upper chamber of the valve is depressurized, the piston is pushed by the medium pressure in the lower chamber, and the solenoid valve opens. When the coil is powered off, the pilot valve core is reset by the spring, the pilot hole is closed, and the valve upper chamber is pressurized by the piston orifice and the thrust of the reset spring, and the solenoid valve is closed.

常開式：當線圈通電時，先導閥芯靠彈簧復位，先導孔關閉，閥上腔由活塞節流孔增壓和復位彈簧的推力，電磁閥關閉。 當線圈斷電時，先導閥芯靠彈簧復位，先導孔打開，閥上腔卸壓，活塞靠下腔介質壓力推動，電磁閥打開。

注：出口端壓力大于進口端壓力，介質會反向導通?？砂惭b止回閥

Normally open: When the coil is energized, the pilot valve core is reset by the spring, the pilot hole is closed, and the upper chamber of the valve is pressurized by the piston orifice and the thrust of the reset spring, and the solenoid valve is closed. When the coil is powered off, the pilot valve core is reset by the spring, the pilot hole is opened, the upper chamber of the valve is depressurized, the piston is pushed by the medium pressure in the lower chamber, and the solenoid valve opens. Note: If the outlet pressure is greater than the inlet pressure, the medium will conduct in the opposite direction. Can be installed with a check valve

進口高溫電磁閥特點-- 活塞結構性能穩定；

密封采用耐高溫材料，線圈外圍增設散熱機構;

閥塞與閥間巧妙地利用流體潤滑作用，減少磨損;

閥芯均為不銹鋼活塞式, 活塞環不會被介質中的雜質卡死;

進口高溫電磁閥選型參數--

產品規格：1/4-4"

閥體材質：不銹鋼/2025

介質溫度：+300~+600℃ ~+800℃

適用壓力：0-100MPa

介質溫度：-200~+450℃。

環境溫度：－20～＋50℃

防護性能：防水、防爆（DⅡCT5、ExdⅡCT5、ExmbⅡCT4、ExdⅡCT4）、防腐。

防護等級：IP67、IP65

閥芯材質: 均為不銹鋼

接線方式：接線座式、引線式、插頭式

控制方式：常開、常閉

電源電壓：DC24~127V；AC36~380V

連接方式：內螺紋、法蘭

適用介質：粘度：≤21m㎡/s，（大于21時需定制）氣、水、油、蒸汽、燃氣、腐蝕性氣態或液態流體。
