品牌：RETZ瑞茨/我們一直致力于流體控制領域的持續創新，始于2005……進口水下電磁閥也稱之潛水電磁閥、水下電磁閥、噴泉專用電磁閥，是自動控制系統中常見的開關元件、為音樂噴泉的核心控制設備，特別適用于跑泉、跳泉的水路控制,利用介質壓力差工作的直動式電磁閥門，他采用膜片結構，具有啟閉迅速、性能穩定、使用方便、可靠性高、壽命長等特點；該閥抗污能力極強，可在江、河、湖、海及各種人工水域中長期使用

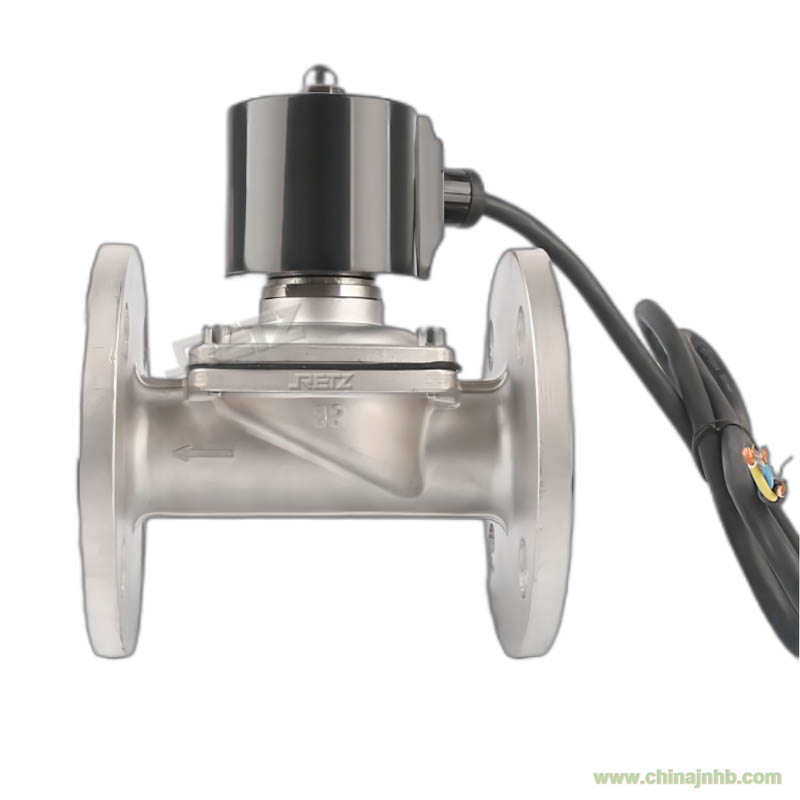

Underwater solenoid valves, also known as submersible solenoid valves, underwater solenoid valves, and fountain specific solenoid valves, are common switching components in automatic control systems and the core control equipment for music fountains. They are particularly suitable for controlling the water path of running springs and jumping springs. Direct acting solenoid valves that utilize medium pressure differences work. They adopt a diaphragm structure and have characteristics such as fast opening and closing, stable performance, convenient use, high reliability, and long service life; This valve has strong anti pollution ability and can be used for a long time in rivers, lakes, seas, and various artificial water bodies

進口水下電磁閥工作原理-Working principle of imported underwater solenoid valve

常閉式：Normally closed

當線圈通電時，先導閥芯吸合，先導孔打開，閥上腔卸壓，活塞靠下腔介質壓力推動，電磁閥打開。當線圈斷電時，先導閥芯靠彈簧復位，先導孔關閉，閥上腔由活塞節流孔增壓和復位彈簧的推力，電磁閥關閉。

When the coil is energized, the pilot valve core is closed, the pilot hole opens, the upper chamber of the valve is depressurized, the piston is pushed by the medium pressure in the lower chamber, and the solenoid valve opens. When the coil is powered off, the pilot valve core is reset by the spring, the pilot hole is closed, and the valve upper chamber is pressurized by the piston orifice and the thrust of the reset spring, and the solenoid valve is closed.

常開式：Normally open

當線圈通電時，先導閥芯靠彈簧復位，先導孔關閉，閥上腔由活塞節流孔增壓和復位彈簧的推力，電磁閥關閉。當線圈斷電時，先導閥芯靠彈簧復位，先導孔打開，閥上腔卸壓，活塞靠下腔介質壓力推動，電磁閥打開。

When the coil is energized, the pilot valve core is reset by the spring, the pilot hole is closed, and the valve upper chamber is pressurized by the piston orifice and the thrust of the reset spring, and the solenoid valve is closed. When the coil is powered off, the pilot valve core is reset by the spring, the pilot hole is opened, the upper chamber of the valve is depressurized, the piston is pushed by the medium pressure in the lower chamber, and the solenoid valve opens.

進口水下電磁閥結構特點--

動作響應迅速；

獨特設計、外觀精美；

密封性好、開關迅速；

專制線圈、不易燒毀；

可安裝于水下500米深處;

進口水下電磁閥選型參數--

產品規格：3/8-4"

閥體材質：黃銅、不銹鋼

介質溫度： -20℃ ~+100 ℃

適用壓力：0.01MPa~0.6MPa

防護性能：防水、防爆（DⅡCT5、ExdⅡCT5、ExmbⅡCT4、ExdⅡCT4）、防腐。

防護等級：IP67、IP65

閥芯材質:  均為不銹鋼

接線方式：接線座式、引線式、插頭式

控制方式：常開、常閉

電源電壓：DC24~127V；AC36~380V
