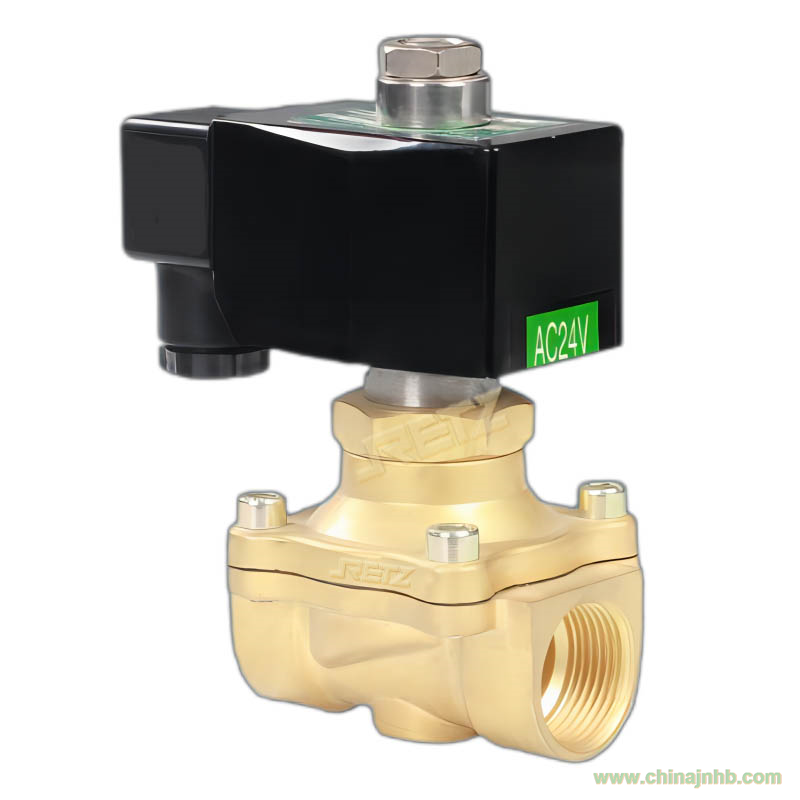

品牌：RETZ瑞茨/我們一直致力于流體控制領域的持續創新，始于2005……進口零壓啟動電磁閥亦稱之為無壓差電磁閥、分步直動式電磁閥，是直動式與先導式結合的一種閥，通常用于中、大口徑，工作壓力零至低壓力的管道系統中Retz zero pressure start solenoid valve, also known as no pressure difference solenoid valve or step-by-step direct action solenoid valve, is a type of valve that combines direct action and pilot type. It is usually used in medium and large caliber pipeline systems with zero to low working pressure

進口零壓啟動電磁閥工作原理--

常閉式：當線圈通電時，電磁力先打開先導孔，主閥活塞上腔壓力下降，從而利用壓差和電磁力吸動先導閥芯連動主活塞，閥口打開；斷電時，靠彈簧復位關閉先導孔，主活塞上腔增壓，推動主活塞向下移動，閥關閉。

Normally closed type: When the coil is energized, the electromagnetic force first opens the pilot hole, causing the pressure in the upper chamber of the main valve piston to decrease. Therefore, the pressure difference and electromagnetic force are used to attract the pilot valve core and connect the main piston, opening the valve port; When the power is cut off, the pilot hole is closed by spring reset, and the upper chamber of the main piston is pressurized, pushing the main piston to move downwards, and the valve is closed

常開式：與常閉式相反

Normally open: opposite to normally closed

進口零壓啟動電磁閥結構特點--

有活塞式結構和膜片式結構

零壓啟動、低壓結合，性能穩定

塑封線圈，提高閥的可靠性并能防水、防潮，不易燒毀，線圈不易燒毀

線圈啟動閥芯同時拉動活塞，在零壓時都能正常工作;

長時間停止動作重新啟動，動作同樣靈敏，使用壽命長

進口零壓啟動電磁閥選型參數--

閥體材質：黃銅或不銹鋼

接口尺寸：G1/8-G1"或F1/2-F4"

工作壓力：0-1.6MPa

適用介質：中性，氣態或液態流體

介質粘度：≤21mm2/s

介質溫度：-10~+80℃(+350℃,可選)

環境溫度：-10~+50℃

密封材質：NBR(標準)，FPM、EPDM(可選)

標準電壓: AC:220V(50/60Hz) DC:24V

防護性能：防水、防爆（DⅡCT5、ExdⅡCT5、ExmbⅡCT4、ExdⅡCT4）、防腐。
