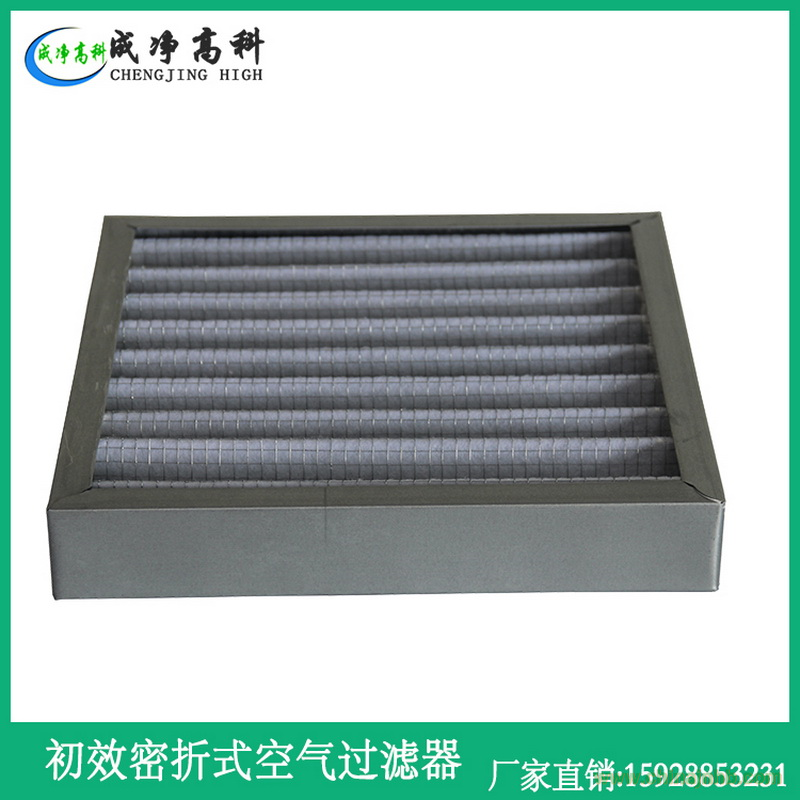

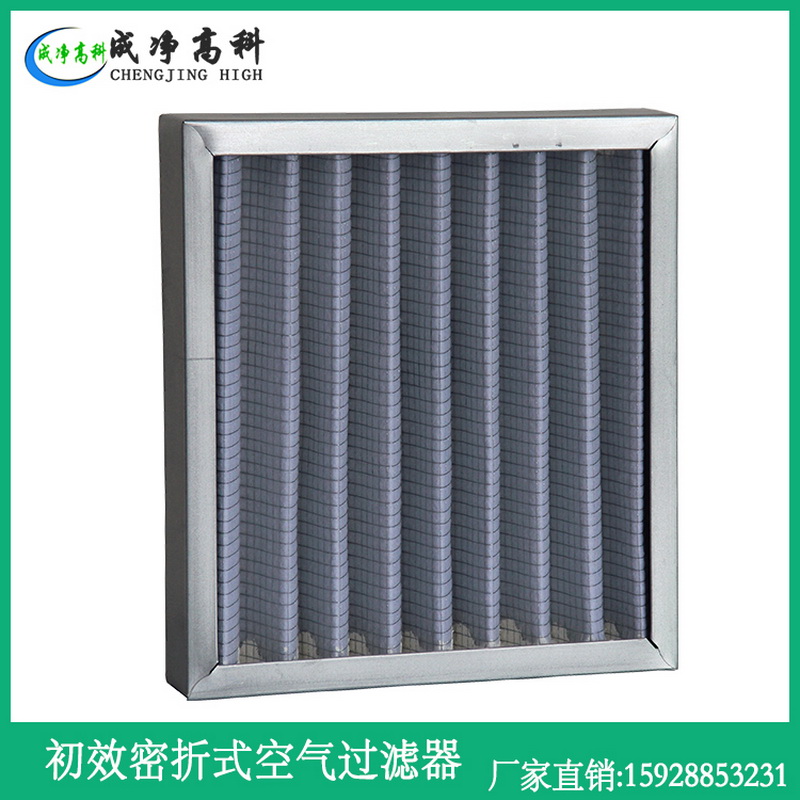

折疊式初效空氣過濾器安徽合肥G4密折式初效過濾器|安徽合肥G4子母架可清空氣過濾器
山西太原G4密折式初效過濾器|山西太原G4子母架可清空氣過濾器
Fold-down coarse efficiency air filter甘肅蘭州G4密折式初效過濾器|甘肅蘭州G4子母架可清空氣過濾器
特點Features
●紙框或鋁合金金屬外框
●阻力小、風量大
●適用于空調系統的初級過濾
●Paper box or aluminum metal frame
●Responding to small resistance, air
●Applicable to air conditioning system adopts the primary filtration
型號尺寸及其他參數
Standard specification
|
型號
model
|
外形尺寸
Outside Dimensions
(mm)
|
額定風量
Rated air flow
(m3/h)
|
初阻力
Initial resistance
(Pa)
|
效率（級別）
Efficiency(class)
|
濾料型號
Model of filter media
|
|
CJ-S4-1
|
295×295×46mm
12″×12″×13/4″
|
800m3/h
|
25Pa
|
50%
(計重法)
weight
|
G3
G4
|
綠色、藍色、白色初效過濾棉
Green, blue, white, early filter cotton effect
|
|
CJ-S4-2
|
495×295×46mm
20″×12″×13/4″
|
1300m3/h
|
|
CJ-S4-3
|
495×495×46mm
20″×20″×13/4″
|
2200m3/h
|
|
CJ-S4-4
|
595×295×46mm
24″×12″×13/4″
|
1600m3/h
|
|
CJ-S4-5
|
595×495×46mm
24″×20″×13/4″
|
2700m3/h
|
|
CJ-S6-6
|
595×595×46mm
24″×24″×13/4″
|
3200m3/h
|
*可要據用戶要求定制不同規格型號的過濾器
According to user requirements to customize different specifications and types of filters
