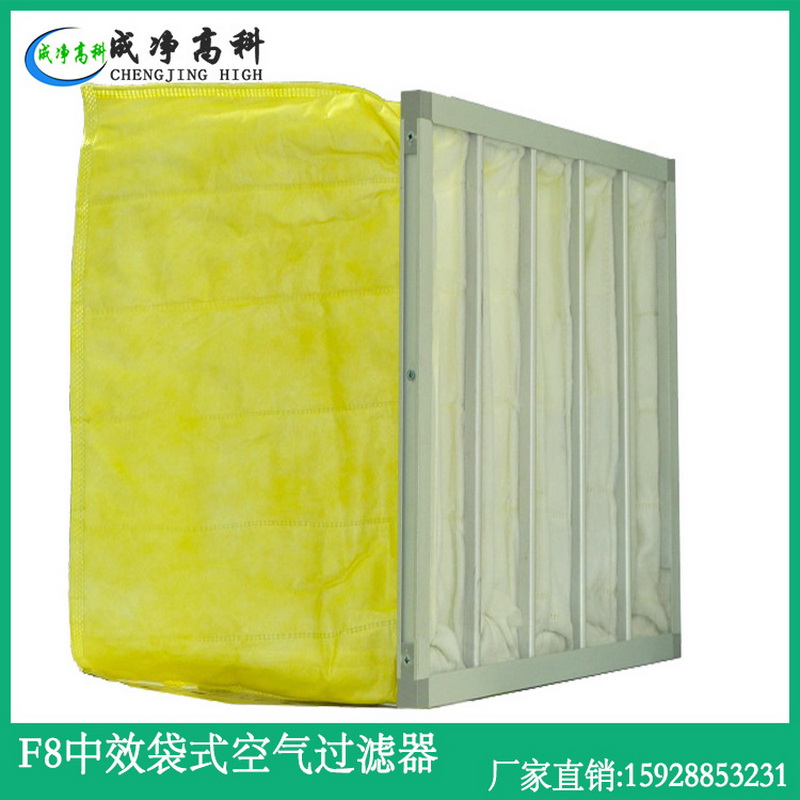

中效袋式空氣過濾器成都初效過濾器 成都中效過濾器 成都高效過濾器
Air filter bag in effect
特點Features
●可重復使用多次
●阻力小、風量大
●廣泛運用于空調系統的中級過濾
●Adopts reusable times
●Responding to small resistance, air
●Widely used in air conditioning system of intermediate filtration
構成材料及運行條件
Materials and operating conditions
●框材：鋁合金或鍍鋅板外框
●External frane：Aluminum alloy steel or frame
●濾料材質：新型復合無紡布
●Filter material: new composite nonwoven fabric
●濾料顏色：F5(白色)45%（淺黃色）、F6(綠色)65%（桔紅色）、
F7(粉紅色)85%（紫色）、F8(淺黃色)95%（深黃色）
●Liao color: The F5 (white) 45% (yellow), F6 (green) 65% (orange),
F7 (pink) 85% (purple), F8 (yellow) 95% (deep yellow)
●密封條：醋酸乙酯
●Gasket：EVA
●使用溫度、濕度：80℃、80%以內
●Use the highest temperature, humidity：80℃、80%
型號尺寸及其他參數
Standard specification
|
型號
model
|
外形尺寸
Outside Dimensions
(mm)
|
額定風量
Rated air flow
(m3/h)
|
初阻力
Initial resistance(Pa)
|
效率（級別）
Efficiency
(class)
|
濾料顏色
Liao color
|
袋數
pockets
|
|
CJ-M1-D1
|
495×295×500mm
20″×12″×20″
|
1000m3/h
|
50Pa F5
55Pa F6
60Pa F7
65Pa F8
|
40-50% F5
60-70% F6
75-85% F7
85-95% F8
（比色法）
colorimetric
|
白色F5
White
綠色F6
Green
粉紅F7
pink
淺黃F8
yellow
|
5
|
|
CJ-M1-D2
|
495×495×500mm
20″×20″×20″
|
1800m3/h
|
5
|
|
CJ-M1-D3
|
595×295×500mm
24″×12″×20″
|
1300m3/h
|
6
|
|
CJ-M1-D4
|
595×495×500mm
24″×20″×20″
|
2200m3/h
|
6
|
|
CJ-M1-D5
|
595×595×500mm
24″×24″×20″
|
2600m3/h
|
8
|
|
CJ-M1-D6
|
495×295×600mm
20″×12″×24″
|
1200m3/h
|
5
|
|
CJ-M1-D7
|
495×495×600mm
20″×20″×24″
|
2200m3/h
|
5
|
|
CJ-M1-D8
|
595×295×600mm
24″×12″×24″
|
1600m3/h
|
6
|
|
CJ-M1-D9
|
595×495×600mm
24″×20″×24″
|
2700m3/h
|
6
|
|
CJ-M1-D10
|
595×595×600mm
24″×24″×24″
|
3200m3/h
|
8
|
*可要據用戶要求定制不同規格型號的過濾器
According to user requirements to customize different specifications and types of filters
