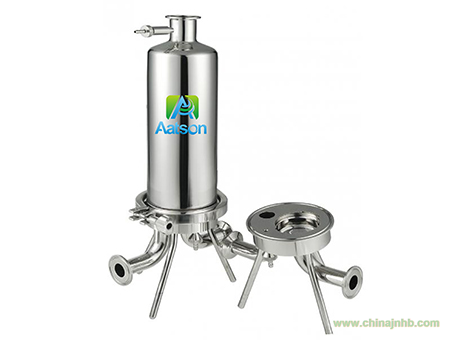

芯式過濾器
Core filter
【基本說明】：
芯式過濾器（也稱作保安過濾器）大都采用不銹鋼做外殼，內部裝過濾濾芯（例如PP棉），主要用在多介質預處理過濾之后，反滲透、超濾等膜過濾設備之前。用來濾除經多介質過濾后的細小物質（例如微小的石英沙，活性炭顆粒等），以確保水質過濾精度及保護膜過濾元件不受大顆粒物質的損壞。
采用PP棉、尼龍、熔噴等不同材質作濾芯，去除水中的微小懸浮物，細菌及其它雜質等，使原水水質達到進水要求。
Basic Specificion:
Core filters, also known as security filters, are mostly adopting stainless steel as shell, with filter elements such as PP cotton inside. They are mainly used after multi-media pretreatment, before membrane filtration equipment such as reverse osmosis and ultrafiltration. It is applied to filter fine substances such as tiny quartz sand, activated carbon particles after multi-media filtration to ensure the filtration accuracy of water quality and protect membrane filter elements from damage by large particles.
PP cotton, nylon, melt blown and other different materials are used as filter elements to remove micro-suspended substances, bacteria and other impurities in water, so as to make the raw water quality meet the requirements of inlet water.
【結構及工作原理】：
芯式過濾器主要由：濾布、濾網、濾片、燒結濾管、線繞濾芯、熔噴濾芯等構成。因濾材的不同，過濾孔徑也不相同。
芯式過濾器是介于砂濾(粗濾)與超濾之間的一種過濾，過濾孔徑一般在0.5～120μm范圍。同種形式的濾材，按外型尺寸可分為不同的規格。線繞濾芯(又稱蜂房濾芯)有兩種：一種是聚丙烯纖維---聚丙烯骨架濾芯，zui高使用溫度60℃;另一種是脫脂棉纖維---不銹鋼骨架濾芯，zui高使用溫度120℃。 熔噴濾芯是以聚丙烯為原料，采用熔噴工藝形成的濾材，zui高工作溫度60℃。 精密過濾可去除水中的懸浮物、某些膠體物質和小顆粒物。
芯式過濾器利用濾芯的孔隙進行機械過濾。水中殘存的微量懸浮顆粒、膠體、微生物等，被截留或吸附在濾芯表面和孔隙中。隨著制水時間的增長，濾芯因截留物的污染，其運行阻力逐漸上升，當運行至進出口水壓差達0.1MPa時，應更換濾芯。保安過濾器的主要優點是效率高、阻力小、便于更換。
Structure and working principle:
The core filter mainly consists of filter cloth, filter mesh, filter, sintered filter tube, wire wound filter element, melt blown filter element, etc. Because of the different filter materials, the filter aperture varies with the filtration material.
Core filter is a kind of filter between sand filtration (coarse filtration) and ultrafiltration, and its pore size is generally in the range of 0.5-120 micron. The same type of filter material can be divided into different specifications according to its size. Wire-wound filter element, also known as beehive filter element, has two kinds: one is polypropylene fiber - Polypropylene skeleton filter element of which the highest using temperature is 60 degrees C; the other one is degreased cotton fiber - stainless steel skeleton filter element of which the highest using temperature is 120 degrees C. Melt-blown filter element is a kind of filter material which is made of polypropylene by melt-blown process. The highest working temperature is 60 C. Precision filtration can remove suspended solids, some colloidal substances and small particles in water.
The core filter uses the pore of the filter element for mechanical filtration. The remaining suspended particles, colloids and microorganisms in water are intercepted or adsorbed in the surface and pore of the filter core. Because of the deposits contamination, the resistance of filter element increases gradually with the increasing of water-making time. When the pressure difference between inlet and outlet reaches 0.1 MPa, the filter element should be replaced. The main advantages of security filter are high efficiency, low resistance and easy to replace.
【主要特點】：
■ 能有效除去液體中的懸浮物、鐵銹等。
■ 可承受較高的過濾壓力。
■ 獨特的深層網孔結構使濾芯有較高的容渣負荷能力。
■ 濾芯可用多種材質制作,以適應各種流體過濾的需要。
■ 外形體積小,過濾面積大,阻力小,使用壽命長
Main features:
● It can effectively remove suspended solids and rust in liquids.
● It can withstand high filtration pressure.
● The unique deep mesh structure makes the filter element have higher slag loading capacity.
● The filter element can be made of a variety of materials to meet the needs of various fluid filtration.
● Small size, large filtering area, small resistance and long service life
【產品分類】：
Product classification：
|
名稱
Name
|
型號
Model
|
說明
Explain
|
|
折疊膜式濾芯過濾器
Folding Membrane Filter
|
CF
|
適用于高精度
Suitable for high precision
|
|
熔噴式濾芯過濾器
Melt Blown Filter
|
CM
|
適用深層過濾，流量大
Suitable for deep filtration, large flow rate
|
|
線繞式濾芯過濾器
Wire-Wound Filter
|
CW
|
適用深層過濾，納污效果好
Suitable for deep filtration, good contamination acceptance effect
|
|
特種濾芯過濾器
Special Core Filter
|
CS
|
適用特種工況要求
Suitable for special working conditions
|
【行業應用】：
■ 酸堿液、溶劑等澄清過濾
■ 光刻膠、光阻劑、顯影液等終端過濾
■ 墨水、涂料、油墨、膠黏劑等終端過濾
■ 是生物醫藥純水、飲料、生化水處理、環保等行業的理想過濾設備。
Industry applications:
● Clarification and filtration of acid-base liquor, solvent, etc.
● Terminal filtration of photoresist, photoresistor, developer, etc.
● Terminal filtration of ink, paint, ink, adhesives, etc.
● It is an ideal filter equipment for the industries of purified water in biological medicine, beverage, biochemical water treatment and environmental protection.
【參數表】：
Parameter table：
|
型號
Model
|
濾芯根數
Number of filter
elements
|
濾芯長度
Filter core length
（mm）
|
筒體直徑
Barrel diameter
（mm)
|
進出口尺寸
Import and export
size
|
|
C1P10
|
1
|
10
|
100
|
DN25
|
|
C1P20
|
1
|
20
|
100
|
DN25
|
|
C1P30
|
1
|
30
|
100
|
DN25
|
|
C3P10
|
3
|
10
|
180
|
DN25
|
|
C3P20
|
3
|
20
|
180
|
DN25
|
|
C3P30
|
3
|
30
|
180
|
DN25
|
|
C3P40
|
3
|
40
|
180
|
DN25
|
|
C5P10
|
5
|
10
|
220
|
DN25
|
|
C5P20
|
5
|
20
|
220
|
DN25
|
|
C5P30
|
5
|
30
|
220
|
DN25
|
|
C5P40
|
5
|
40
|
220
|
DN25
|
|
C7P10
|
7
|
10
|
250
|
DN40
|
|
C7P20
|
7
|
20
|
250
|
DN40
|
|
C7P30
|
7
|
30
|
250
|
DN40
|
|
C7P40
|
7
|
40
|
250
|
DN40
|
|
C9P20
|
9
|
20
|
300
|
DN50
|
|
C9P30
|
9
|
30
|
300
|
DN50
|
|
C9P40
|
9
|
40
|
300
|
DN50
|
|
C12P20
|
12
|
20
|
325
|
DN50
|
|
C12P30
|
12
|
30
|
325
|
DN50
|
|
C12P40
|
12
|
40
|
325
|
DN50
|
|
C15P20
|
15
|
20
|
370
|
DN50
|
|
C15P30
|
15
|
30
|
370
|
DN50
|
|
C15P40
|
15
|
40
|
370
|
DN50
|
|
C18P20
|
18
|
20
|
400
|
DN50
|
|
C18P30
|
18
|
30
|
400
|
DN50
|
|
C18P40
|
18
|
40
|
400
|
DN50
|
|
1、濾芯材質：聚丙烯、聚四氟乙烯、尼龍膜、活性炭纖維等
Material of filter core: polypropylene, polytetrafluoroethylene, nylon membrane, activated carbon fiber, etc.
|
|
2、濾芯尺寸：10”、20”、30”、40”
Size of filter element: 10","20","30","40"
|
|
3、濾芯接口：222/226、DOE、平口
Filter element interface: 222/226, DOE, flat mouth
|
|
4、精度范圍：0.1-100μm
Accuracy range: 0.1-100 um
|
|
5、適用粘度：1-2000cp
Applicable Viscosity: 1-2000 CP
|
|
6、單機濾芯數量：1-200
Number of single filter element: 1-200
|
|
如需其它規格，可聯系我司技術人員咨詢！
If you need other specifications, you can contact our technical staff for consultation!
|
【選型說明】：
Selection explanation：
|
C1P10 - CF - F50 - 304 - PN10 - PS
|
|
型號
Model
|
子型號
Subtype
|
接口尺寸
Interface size
|
殼體材質
Shell material
|
壓力等級
Pressure grade
|
表面處理
surface treatment
|
|
C1P10
（型號）
(model)
|
CF
|
F:法蘭連接
Flange connection
N:螺紋連接
Threaded connection
K:卡箍連接
Clamp connection
|
304
316L
2205
CS
|
PN6
PN10
PN16
更高壓力
Higher pressure
|
PS:噴砂
Sandblasting
PG:拋光
polishing
PQ:噴漆
Spray paint
PF:防腐涂層
Anticorrosive painting
|
|
CM
|
|
CW
|
|
CS
|
