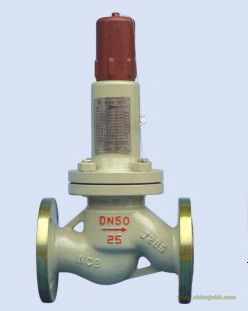

產品名稱：AH42F-16C AH42F-25C不銹鋼安全熱風回流閥
產品型號：AH42F-25
公稱通徑：DN10～DN600、1/2″～25″
公稱壓力：PN1.0～32MPa 美標：150Lb～2500Lb
適用溫度：≤-196℃～580℃
設計制造：GB/T12243、APl 520
法蘭連接：JB/T79
|
公稱壓力
|
AH42F-16/25/40/64/100整定壓力(MPa)
|
|
1.6
|
>0.1-0.16
|
>0.16-0.25
|
>0.25-0.4
|
>0.4-0.6
|
>0.6-0.8
|
>0.8-1.0
|
>1.0-1.3
|
>1.3-1.6
|
|
2.5
|
>1.3-1.6
|
>1.6-2.0
|
>2.0-2.5
|
"
|
"
|
"
|
"
|
"
|
|
4.0
|
>1.3-1.6
|
>1.6--2.0
|
>2.0-2.5
|
>2.5-3.2
|
>3.2-4.0
|
"
|
"
|
"
|
|
6.4
|
>2.5-3.2
|
>3.2-4.0
|
>4.0-5.0
|
>5.0-6.4
|
"
|
"
|
"
|
"
|
|
10.0
|
>3.2-4.0
|
>4.0-5.0
|
>5.0-6.4
|
>6.4-8.0
|
>8.0-10.0
|
"
|
"
|
"
|
|
16.0
|
>8.0-10.0
|
>10-13
|
>13-16
|
"
|
"
|
"
|
"
|
"
|
|
32.0
|
>13-16
|
>16-19
|
>19-22
|
>22-25
|
>25-29
|
>29-32
|
"
|
"
|
