臺灣317青銅過濾器YS-BC6
|

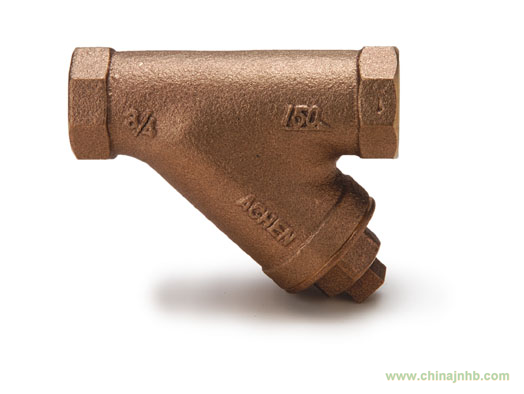

(YS-BC6) BRONZE Y-PATTERN STRAINER CLASS 150
|
MODEL : YS-BC6
|
* Please name the model No. (YS-BC6) when negotiation.
|
|
* Y-Pattern body, Screwed cap, stainless steel 304 screen.
|
|
* The available Thread: BS21 or ANSI B2.1
|
|
|
|
Working Pressure:
|
|
|
300 psi. W.O.G. non-shock
|
|
|
150 psi. S.P. saturated
|
|
|
|
|
|
Hydrostatic Test Pressure:
|
|
|
Shell 450 psi. (Hydrostatic)
|
|
|
|
|
Material:
|
|
Model:
|
YS-BC6
|
|
|
Body
|
BRONZE
|
|
|
Body Cap
|
BRONZE
|
|
|
Gasket
|
ASBESTOS
|
|
|
Screen
|
SUS 304. 20 mesh
|
|
|
DIMENSION
|
mm
|
|
Size
|
inch
|
1/2
|
3/4
|
1
|
1.1/4
|
1.1/2
|
2
|
2.1/2
|
3
|
|
|
mm
|
15
|
20
|
25
|
32
|
40
|
50
|
60
|
80
|
|
|
L End to end
|
80
|
100
|
115
|
135
|
160
|
190
|
230
|
264
|
|
|
H Height
|
59
|
67
|
85
|
95
|
105
|
133
|
142
|
165
|
|
