臺灣317銅閘閥BG-P42
|

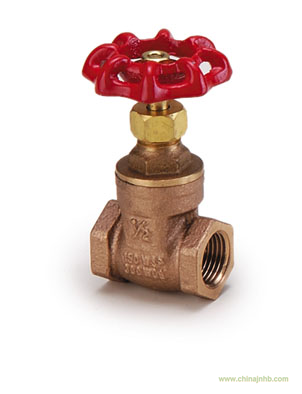

(BG-P42) BRASS GATE VALVE CLASS 125
|
MODEL : BG-P42
|
* Please name the model No. (BG-P42) when negotiation.
|
|
* Screwed bonnet, Non-rising stem, Solid wedge disc,
Integral seat.
|
|
* The available Thread: BS21 or ANSI B2.1
|
|
|
|
Working Pressure:
|
|
|
200 psi. W.O.G. non-shock
|
|
|
125 psi. S.P. saturated
|
|
|
|
Hydrostatic Test Pressure:
|
|
|
Shell 300 psi.
|
|
|
Seat 200 psi
|
|
|
|
Material:
|
|
Model:
|
BG-P42
|
|
|
|
Body
|
CAST BRASS
|
|
|
Bonnet
|
CAST BRASS
|
|
|
Stem
|
FORGED BRASS
|
|
|
Packing Nut
|
BRASS
|
|
|
|
Disc
|
CAST BRASS
|
|
|
Handwheel
|
CAST IRON
|
|
|
|
Wheel Nut
|
BRASS ROD
|
|
|
Name Plate
|
BRASS
|
|
|
|
Lock Nut
|
BRASS ROD
|
|
|
|
Gland Packing
|
NBR
|
|
|
|
|
DIMENSION
|
mm
|
|
Size
|
inch
|
1/4
|
3/8
|
1/2
|
3/4
|
1
|
1.1/4
|
1.1/2
|
2
|
2.1/2
|
3
|
4
|
|
|
mm
|
8
|
10
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
|
|
L End to end
|
40
|
41
|
43
|
48
|
53
|
59
|
63
|
69
|
86
|
96
|
115
|
|
|
H Height (open)
|
74
|
74
|
76
|
84
|
96
|
115
|
124
|
142
|
186
|
215
|
260
|
|
|
D Handwheel dim.
|
53
|
53
|
53
|
53
|
58
|
73
|
73
|
84
|
100
|
115
|
130
|
|
|
Packing (pcs/box)
|
120
|
120
|
120
|
80
|
64
|
36
|
30
|
20
|
12
|
6
|
4
|
|
|
