Electrical Date
Poly |
JYG-029 |
| Nominal peak power(Pmax) |
1W |
| Operating Voltage(Vmp) |
5V |
| Operating Current(Imp) |
214MA |
| Short-circuitcurrent(Isc) |
240MA |
| Open-cicuit Voltage(Voc) |
5.5V |
| Optimized cell efficiency |
16.5%-17% |
Limits
Operating temperature |
-40°C to +85°C |
| Maximum system voltage |
1000VDC |
Temperature and Coefficients
NOCT |
48°C+/-2°C |
| Current temperature coefficient |
%/K |
0.06+/-0.01 |
| Voltage temperature coefficient |
mV/K |
-(78+/-10) |
| Power temperature coefficient |
%/K |
-(0.5+/-0.05) |
Additional Data

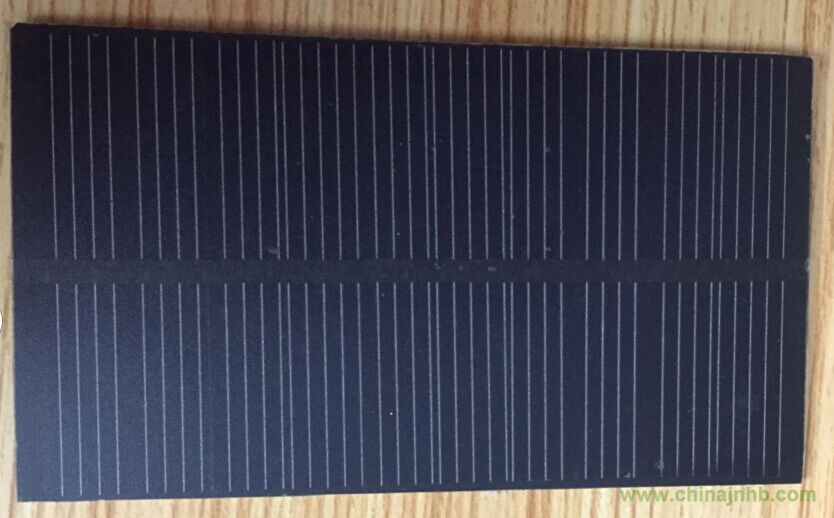

Style of solar panel |
PET laminated |
| Dimensions(MM) |
L*W*H: 107*61*2.5MM
|
| Weight(KG) |
1W:80G |
| Container Loading |
|
Warranty Period |
Replacement for manufacturing defects within 1 years |
| Certificates |
CE,RoHS,FCC |
| Cells |
Polycrystalline silicon photovoltaic cell |
STC:AM1.5,1000W/,working temperature :25oC,
Humidity:<80%,
