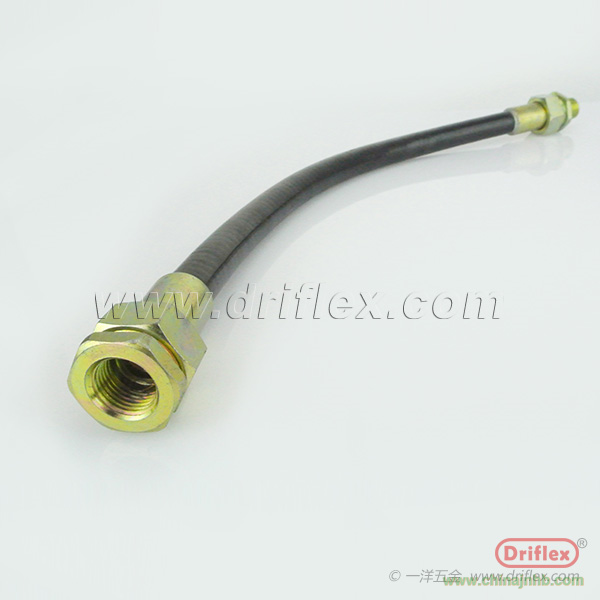

橡膠防爆撓性連接管
|
型號
Part No.
|
管內徑
I.D(mm)
|
接頭管螺紋
（G")
|
長度
Length(mm)
|
彎曲半徑
Bending Radius(mm)
|
|
EXR700xG1/2"
|
15.0
|
1/2"
|
700
|
80
|
|
EXR1000xG1/2"
|
15.0
|
1/2"
|
1000
|
80
|
|
EXR700xG3/4"
|
20.0
|
3/4"
|
700
|
110
|
|
EXR1000xG3/4"
|
20.0
|
3/4"
|
1000
|
110
|
|
EXR700xG1"
|
25.0
|
1"
|
700
|
145
|
|
EXR1000xG1"
|
25.0
|
1"
|
1000
|
145
|
|
EXR700xG1‐1/4"
|
32.0
|
1‐1/4"
|
700
|
160
|
|
EXR1000xG1‐1/4"
|
32.0
|
1‐1/4"
|
1000
|
180
|
|
EXR700xG1‐1/2"
|
40.0
|
1‐1/2"
|
700
|
210
|
|
EXR1000xG1‐1/2"
|
40.0
|
1‐1/2"
|
1000
|
210
|
|
EXR700xG2"
|
50.0
|
2"
|
700
|
250
|
|
EXR1000xG2"
|
50.0
|
2"
|
1000
|
250
|
|
EXR700xG2‐1/2"
|
70.0
|
2‐1/2"
|
700
|
350
|
|
EXR1000xG2‐1/2"
|
70.0
|
2‐1/2"
|
1000
|
350
|
|
EXR700xG3"
|
80.0
|
3"
|
700
|
400
|
|
EXR1000xG3"
|
80.0
|
3"
|
1000
|
400
|
|
EXR700xG4"
|
100.0
|
4"
|
700
|
500
|
|
EXR1000xG4"
|
100.0
|
4"
|
1000
|
500
|
適用范圍：
1區 2區危險場所。
ⅡA、ⅡB、ⅡC 類爆炸性氣體環境。
產品特點：
具有耐燃、耐腐蝕、耐水、耐老化、撓性良好、結構牢固、工作可靠等特點。 橡膠防爆撓性連接軟管長度，可根據用戶需要特殊加工。 配套碳鋼內絲、外絲接頭螺紋標準有: 英制G螺紋、美標NPT螺紋、 公制ISO等。
標注螺紋規格時應注明內、外絲螺紋。 產品符合GB3836‐2000,IEC60079標準要求。
