加工定制是
品牌BUNSUN
型號BN-10-PBWS-500

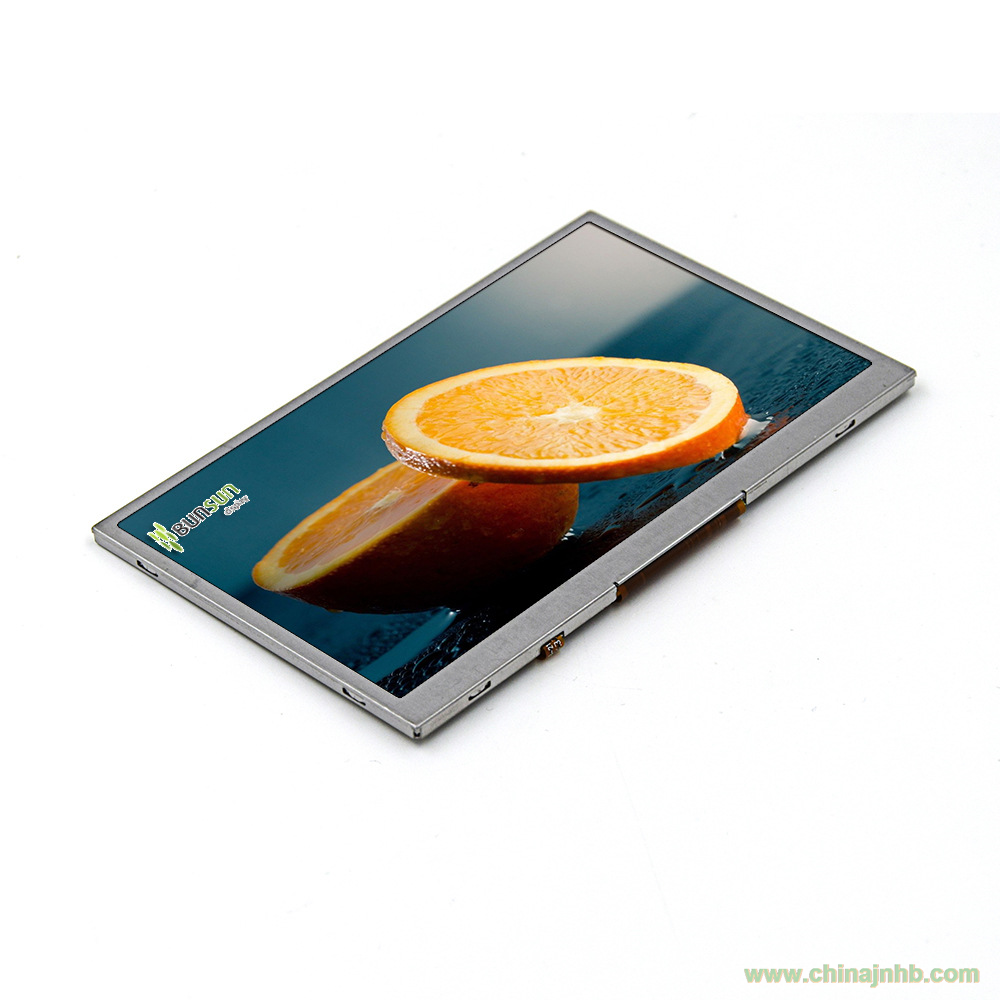

種類TFT型液晶屏(模塊)
屏幕尺寸5（英寸）
分辨率800*480
像素800*480
No. Item Specification Remark
1 LCD Size 5.0 inch(Diagonal)
2 Driver element a-Si TFT active matrix
3 Resolution WVGA: 800 x 3(RGB) x 480
4 Display mode IPS, Normally Black, Transmissive
5 Dot pitch 0.135(W) x 0.135(H) mm
6 Active area 108.00(W) x 64.80(H) mm
7 Module size 120.70(W) x 75.80(H) x 3.10(D) mm Note 1
8 Surface treatment Anti-Glare
9 Color arrangement RGB vertical stripe
10 Interface 24 bits RGB
11 Gray scale inversion None
12 View direction ALL
13 TFT driver ST7262-E
14 Colors 16.7M
15 Backlight type 12-DIES White LED
16 Touch panel type Without
