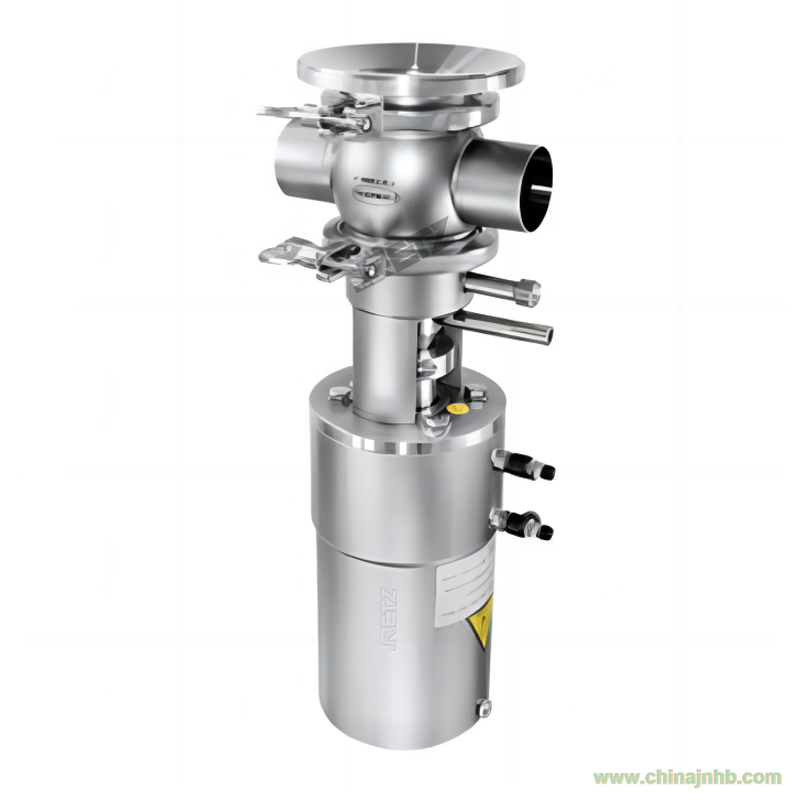

品牌：RETZ/我們一直致力于流體控制和測控領域的持續創新，始于2005……進口防混罐底閥是一款高潔凈、可在線清洗、殺菌于一體的防混式罐底閥The
anti-mixing tank bottom valve is a high-cleanliness, online cleaning and
sterilizationintegrated anti-mixing tank bottom valve.
進口衛生級防混罐底閥通過壓縮空氣的方式進行自控操作的。該閥具有兩個獨立的閥芯密封件，當閥門處在關閉狀態時這兩個密封件之間就會形成一個與大氣相通的匯漏腔，如果出現泄漏液體就會經過泄漏腔排放出去，此時就會觀測到閥門是否有故障或密封損壞信息，同時防止出現泄漏和故障導致兩種介質混合。當閥門開啟時，漏腔是關閉的The
bottom valve of the sanitary level anti mixing tank is automatically operated
through compressed air. This valve has two independent valve core seals. When
the valve is in a closed state, a leakage chamber is formed between these two
seals, which is connected to the atmosphere. If there is a leakage liquid, it
will be discharged through the leakage chamber. At this time, information on
whether the valve has faults or seal damage will be observed, while preventing
leakage and mixing of the two media caused by faults. When the valve is opened,
the leakage chamber is closed.
設計和特點
1.極高的靈活性及簡單的操作
2.標準組件的設計使您能在所有的防混罐底閥中找到的最完美的閥體組合和配置
3.可通過閥門底部泄露管是否有液體流出，可判斷密封圈是否損壞
4.易拆卸，只要卸掉卡箍即可
5.平衡保護設計
6.鍛造球型閥體，設計緊湊
7.閥門配有常閉式氣動執行器
選型參數
規格：1.5"-6",DN40-DN150
材質：316L/1.4404,ASME
BPE 316L 1.4435 NB2 Fe≤0.5%
壓力：真空~10bar(1.0
MPa)
溫度：-20℃到+150℃,取決密封于材質
密封：EPDM
FKM HNBR
連接標準：DIN
SMS ISO IDF RJT BS4825ASME BPE 3A DIN11864 DIN11853
連接方式：螺紋、卡箍、焊接、法蘭
驅動方式：氣動
光潔度：Ra≤0.6μm;MP=Ra≤0.3μm;
EP=Ra≤0.3μm
