品牌：RETZ/我們一直致力于流體控制領域的持續創新，始于2005……進口衛生級罐底隔膜閥應用于生物制藥、食品精細化等行業的配料、容器放料使用，解決了生產過程中罐底閥死角問題，罐底物料充分排放前的滅菌難題，滿足生物制藥工藝要求
retz

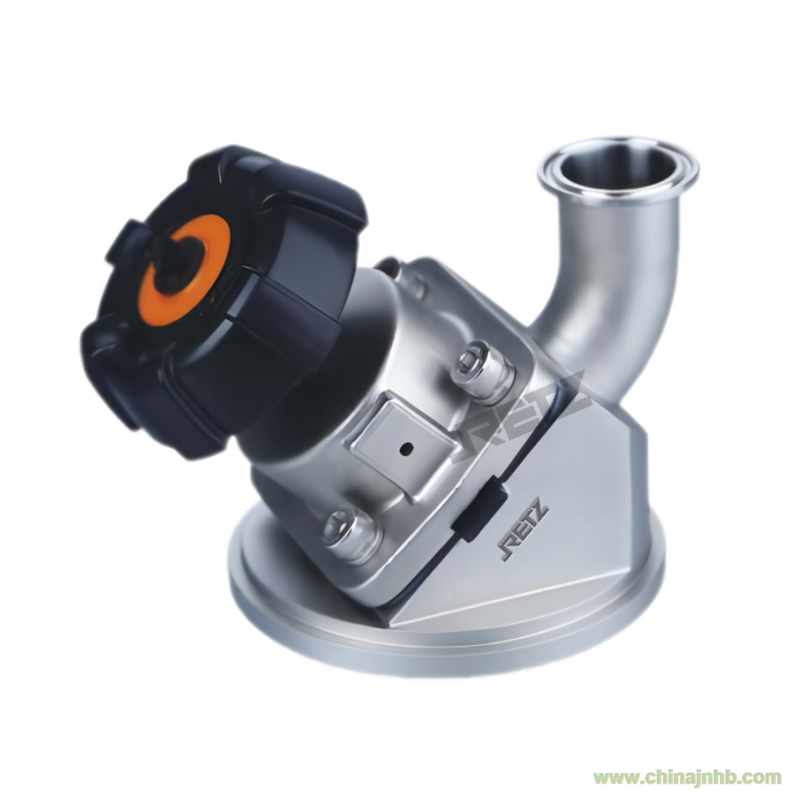

The highest pressure imported sanitary level tank bottom diaphragm valve is
used for ingredients and container discharge in industries such as
biopharmaceuticals and food refinement, solving the problem of dead corners in
the tank bottom valve during the production process and the sterilization
problem before the tank bottom material is fully discharged, meeting the
requirements of the biopharmaceutical process
進口衛生級罐底隔膜閥連接為焊接式、快裝式兩種，安裝使用45度出料可使容器內物料排放干凈，滿足GMP要求，是管道衛生級潔凈閥門
The
connection of the tank bottom valve is of two types: welding type and quick
installation type. The installation and use of a 45 degree discharge can ensure
the discharge of materials inside the container is clean, meeting GMP
requirements. It is a pipeline sanitary grade clean valve
●進口衛生級罐底隔膜閥規格SIZE:1 -4"，DN25-DN100
●標準 BPE： 3A DIN ISO IDF
●溫度Max temperature：-20到150℃(取決于密封材質)(不銹鋼執行器)
●壓力Max pressure：10bar
●閥體材質material quality：ASTM 316L,1.4404,1.4435
NB2 Fe＜0.5%
●連接方式Connection method：焊接、卡箍、螺紋 Welding, clamps,
threads
●操作方式operating mode：手動和氣動 Manual and
pneumatic
RETZ的衛生級閥門可以滿足工控系統的截斷、安全、控制、潔凈的控制產品涵蓋了：進口衛生級隔膜閥、蝶閥、球閥、安全閥、截止閥、疏水閥、泵、取樣閥、電磁閥、電動閥、氣動閥、調節閥
