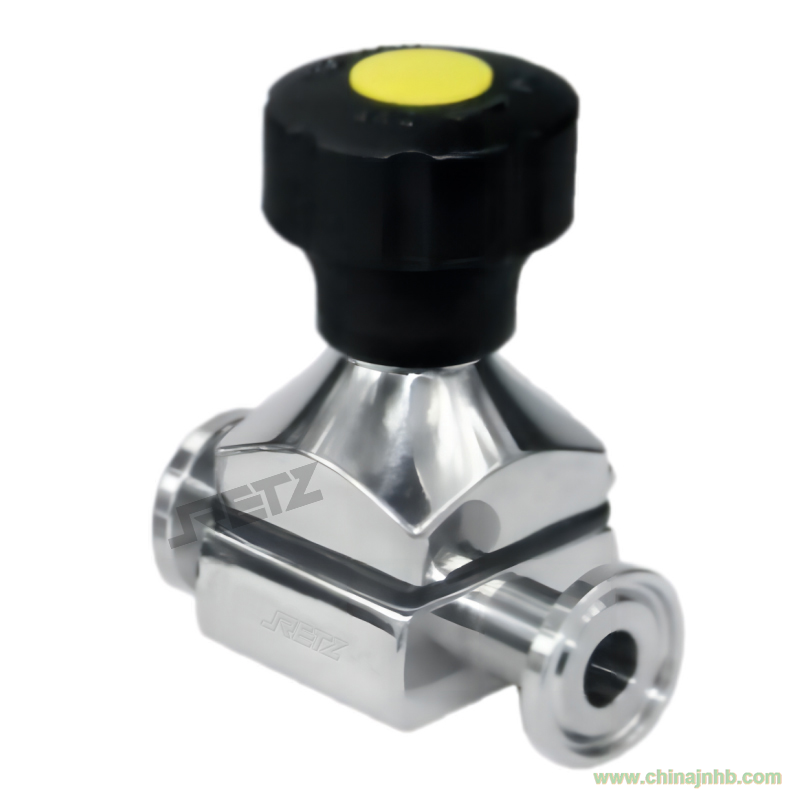

品牌：RETZ/我們一直致力于流體控制領域的持續創新，始于2005……進口衛生級取樣隔膜閥應用在制藥或飲料等灌裝設備具有特別的優勢，在3bar工作壓力時，啟閉次數可達到150萬次壽命，主要應用在料液取樣、生物系統、化驗室等工程上
retz The application of imported sanitary grade
sampling diaphragm valves in filling equipment such as pharmaceuticals or
beverages has special advantages. At a working pressure of 3 bar, the opening
and closing times can reach 1.5 million times, with a service life. It is
mainly used in engineering such as material sampling, biological systems, and
laboratories
●進口衛生級取樣隔膜閥規格SIZE:1/4
"-3/4"，DN6-DN15
●標準 BPE： 3A DIN ISO IDF
●溫度Max temperature：-20到150℃(取決于密封材質)(不銹鋼執行器)
●壓力Max pressure：單向(DELTA P=100%)
常閉橡膠8bar,PTFE 6bar(選項)
常閉橡膠6bar，PTFE 4.5bar(標準)
常開和雙作用橡膠8bar，PTFE 6bar
●閥體材質material quality：1.4404/316L
●連接方式Connection method：焊接、卡箍、螺紋 Welding, clamps,
threads
●操作方式operating mode：手動和氣動 Manual and
pneumatic
RETZ的衛生級閥門可以滿足工控系統的截斷、安全、控制、潔凈的控制產品涵蓋了：進口衛生級隔膜閥、蝶閥、球閥、安全閥、截止閥、疏水閥、泵、取樣閥、電磁閥、電動閥、氣動閥、調節閥
富林克致力于作為流體控制專家，負責中國地區RETZ產品的營銷管理和服務，從而創造價值的企業，RETZ以“堅持更好的品質”為根本，以“持續實現具有創造性、高品質產品和服務的企業價值，為當今社會的繁榮作出貢獻”為企業理念
