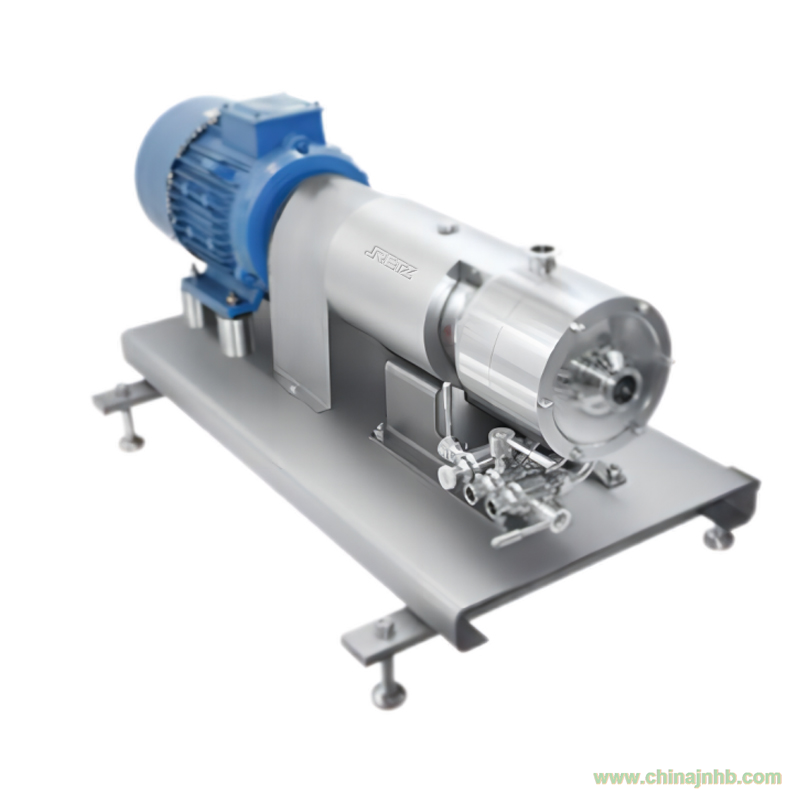

品牌：RETZ/我們一直致力于流體控制領域的持續創新，始于2005……進口衛生級多級乳化均質泵由定子和轉子組成的在線連續性生產的乳化均質泵，被處理的物料將經過三級共12層轉子和定子被逐級分散、剪切、細化、破碎、乳化、混合、均質等。該泵相比較傳統生產工藝更加簡單方便和優化，提高了生產效率、提升了被處理物料的質量。主要應用于，食品、飲料、制藥、保健、精細化工、涂料、農藥、日化洗滌、照紙等各種工業領域retz The imported sanitary grade multi-stage emulsification homogenization pump is an online continuous production emulsification homogenization pump composed of stator and rotor. The processed materials will be dispersed, sheared, refined, crushed, emulsified, mixed, homogenized, etc. through three stages of 12 layers of rotor and stator. This pump is simpler, more convenient, and optimized compared to traditional production processes, improving production efficiency and improving the quality of the processed materials. Mainly used in various industrial fields such as food, beverages, pharmaceuticals, healthcare, fine chemicals, coatings, pesticides, daily chemical washing, and photographic paper

機封系統 Mechanical Seal System

多級均質泵機封設計具有壓力平衡設計、超長使用壽命、極易拆裝維護、無需特殊專用工具，高潔凈要求。并有豐富的機封配置方案。

進口衛生級多級乳化均質泵選型參數

流量范圍 Max Flow rate：50m3/h

功率范圍 Max power ：90KW

溫度范圍 Max temperature ：-20℃到140℃

物料細化 Media refinement: ≤ 100 GRIT (≈ 200μm) ≤100目（約 200μm）

材質 Material： 304 /316L,1.431/1.4404,ASME BPE 316L ,1.4435 NB2 Fe≤0.5%

表面處理 Surface treatment：≤ Ra0.8μm，≤ Ra0.6μm，≤ Ra0.4μm

機封 Machine seal：單機封和雙機封 Single machine seal and dual machine seal

進/出口連接 Inlet/Outlet Connection： 螺紋、卡箍、法蘭、無菌法蘭 Thread, clamp, flange, sterile flange

富林克致力于作為流體控制專家，負責中國地區RETZ產品的營銷管理和服務，從而創造價值的企業，RETZ以“堅持更好的品質”為根本，以“持續實現具有創造性、高品質產品和服務的企業價值，為當今社會的繁榮作出貢獻”為企業理念
