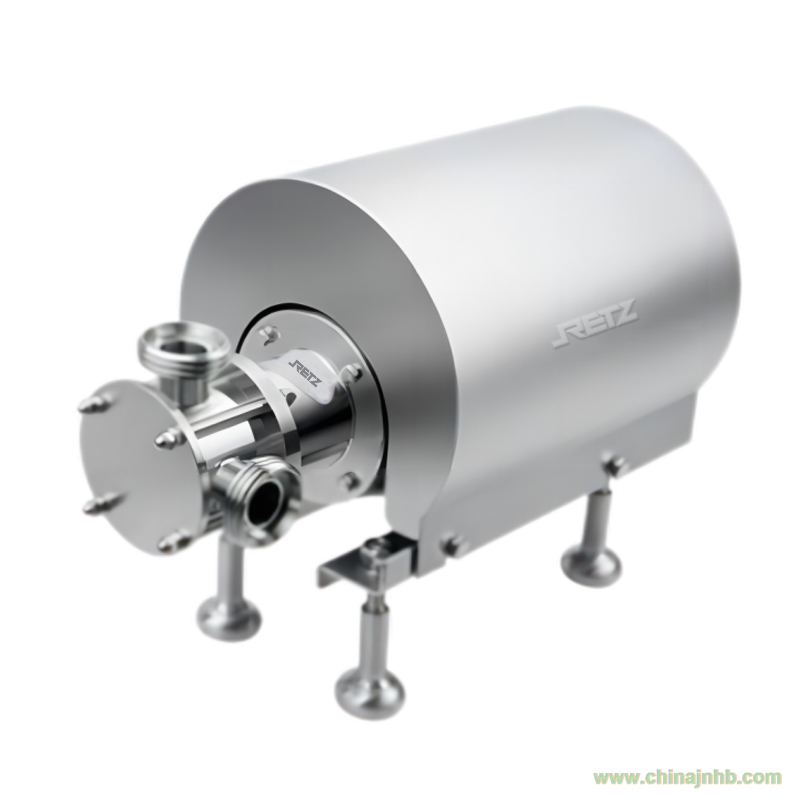

品牌：RETZ/我們一直致力于流體控制領域的持續創新，始于2005……進口衛生級柔性葉片泵具有出色自吸性能的容積泵，其自吸能力可達到5米。輸送粘性的產品時效率幾乎達到抽水的效果,因而其用途非常廣泛，抽吸處理非常平穩柔和，決不會攪打和損傷產品，即使像高脂肪乳脂那樣脆弱的產品。大的漿果，即使有半個桃子大小都可以毫無損傷地通過泵，而且該泵運行完全無脈動。通過調節泵的轉速，它還可以用作定量配料泵retz The imported sanitary grade flexible vane pump is a positive displacement pump with excellent self priming performance, and its self priming capacity can reach 5 meters. When conveying viscous products, the efficiency almost reaches the effect of pumping water, so its use is very wide. The pumping treatment is very smooth and gentle, and it will never stir or damage the product, even fragile products like high fat milk fat. Large berries, even half the size of a peach, can pass through the pump without damage, and the pump operates completely without pulsation. By adjusting the pump speed, it can also be used as a quantitative batching pump

進口衛生級柔性葉片泵工作原理Operating principle

1.      由于泵體定子內表面的偏心構造，在進口處，當體積增大時柔性葉輪的葉片間形成局部真空。由此形成的吸力將液體吸入泵腔中。At pump inlet, due to the inner eccentricstructure of pump stator, partial vacuumbetween the blades of flexible impellerwill be formed when volume is increased. The consequently formedsuction will draw liquid into pumpchamber.

2.旋轉的葉輪將液體從進口送到出口。在循環的這一階段中，葉片間的空間實際上保持恒定。葉片之問的問隙允許體積大的固體顆粒能通過泵而對液體又毫無損傷。

The rotating impeller was carried theiquid from inlet to outlet. At this stage,the space between blades actually waskept constant. The gap between bladesallows big solid particles to passthrough the pump and without damage

on liquid.

3.葉片與泵體定子偏心內表面的平坦部分接觸，當葉輪彎曲時，葉片間的容積減少，就將液體連續地、均衡地從泵中排出。The impeller is contacted with the flatpart of the eccentric inner surface inpump stator. When impeller is bent, thevolume between blades will bedecreased, so the liquid will be discharged continuously and evenlyfrom the pump

進口衛生級柔性葉片泵選型參數

流量范圍（Max flow）: 20m3/h

壓力范圍 （Max pressure） : 4 bar

吸程范圍 （Max suction）: 6 M

溫度范圍   (Max Temperature): 80℃

轉速（Rotating speed:）：1450 R.P.M

材質 (Material)：316L/1.4404

表面處理 (Surface treatment)：Ra≤0.6μm；EP=Ra0.4μm
