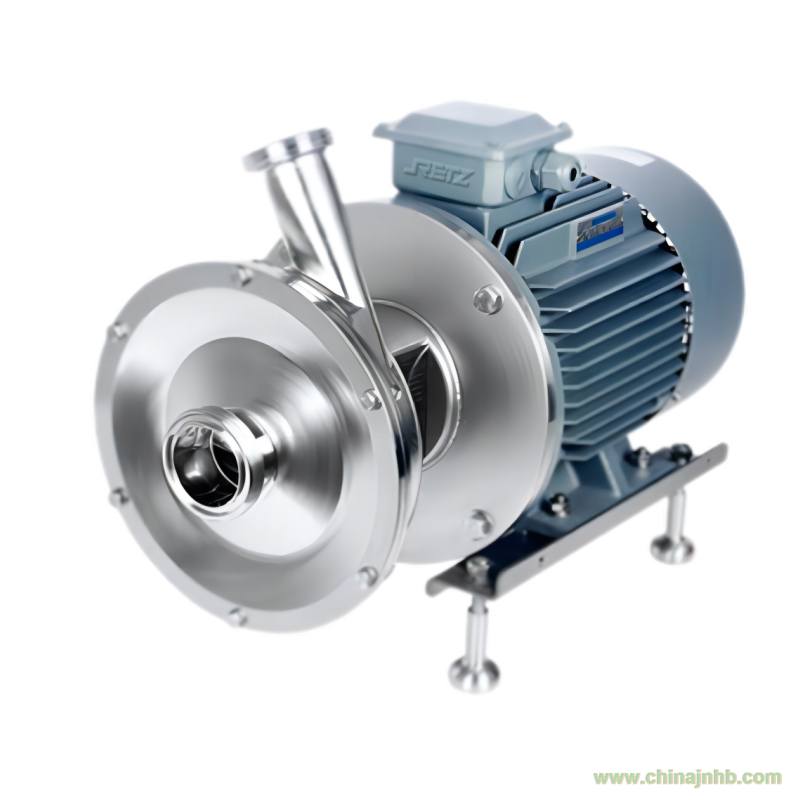

品牌：RETZ/我們一直致力于流體控制領域的持續創新，始于2005……進口衛生級無死角離心泵不僅優化了內部結構、葉輪設計、死角處理、機封壓力平衡設計且機封完全被處在沖洗區域。我們還對泵外部衛生也進行了優化，使其內部清潔衛生、外部減少死角，由于沒有死角區域，它非常容易被CIP清洗、SIP殺菌等，保持了最靈活性組合應用，如，泵出口角度可以從 0°-135°之間任意調整，泵蓋采用手輪螺母，這樣對泵維護和保養及機封的更換，保持了高效，降低了人員高度專業性的要求，而完成這些無需特殊的工具。因而達到了、高效、衛生、高可靠性及低成本的目的retz The imported sanitary grade non dead angle centrifugal pump not only optimizes the internal structure, impeller design, dead angle treatment, mechanical seal pressure balance design, but also the mechanical seal is completely in the flushing area. We have also optimized the external hygiene of the pump to ensure absolute internal hygiene and reduce dead corners. Due to the absence of dead corner areas, it is very easy to be cleaned by CIP, sterilized by SIP, etc., maintaining maximum flexibility in combination applications. For example, the pump outlet angle can be adjusted from 0 ° to 135 °, and the pump cover adopts handwheel nuts, which maintains high efficiency in pump maintenance and seal replacement, Reduced the requirement for highly specialized personnel, without the need for special tools to complete these tasks. Thus achieving the goals of high efficiency, hygiene, high reliability, and low cost

進口衛生級無死角離心泵選型參數

流量flow ：1m3/h-140m3/h

揚程 lift：70M

溫度 Temperature : -20到140℃功率 power：0.37kw-30KW

材質 material quality： 304 /316L,1.431/1.4404,ASME BPE 316L ,1.4435 NB2 Fe≤0.5%

表面處理 Surface Treatment：≤ Ra0.8μm，≤ Ra0.6μm，≤ Ra0.4μm

機封 Machine seal：單機封、雙機封  Single seal,doubleseal

進/出口連接  ： 螺紋、卡箍、法蘭、無菌法蘭 Inlet/outlet connections: threads, clamps, flanges, sterile flanges

管道直徑及連接距離

泵在小流量運行時，效率很低，消耗的能量使液體溫度急劇上升，泵在小流量下運行，通過葉輪間隙回流增加，造成泵壓力脈動、振動、 噪音等危害增加，因而，連接的管道進口直徑不要小于設計進口直徑。為了保證泵運行的更加穩定、泵進口前需要連接一段直管，長度約為5- 10倍管道直徑
