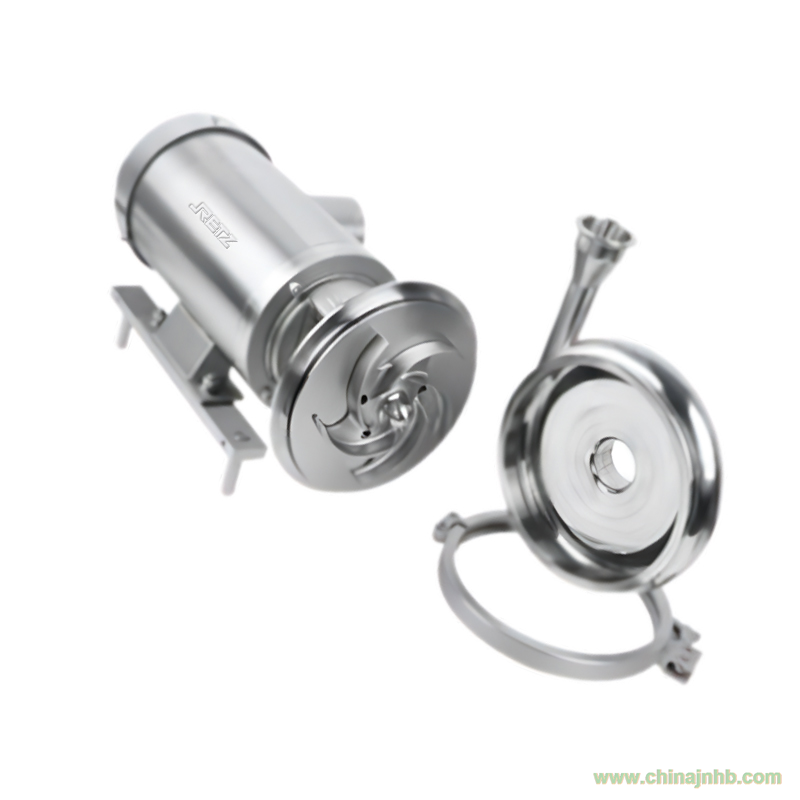

品牌：RETZ/我們一直致力于流體控制領域的持續創新，始于2005……進口衛生級高性能離心泵是一款全不銹鋼設計的離心泵，包含電機也是不銹鋼，它不僅優化了內部結構、葉輪設計、死角處理、機封壓力平衡設計且機封完全被處在沖洗區域。我們還對泵外部衛生也進行了優化，使其內部潔凈衛生、外部減少死角，由于沒有死角區域，它非常容易被CIP清洗、SIP殺菌等。另外我們對泵保持了最靈活性組合應用，如，泵出口角度可以從 0°-360°之間任意調整，泵蓋采用卡箍式連接，這樣對泵維護和保養及機封的更換，保持了高效，降低了人員高度專業性的要求，而這些無需特殊的工具。因完成而達到了、高效、衛生、高可靠性及低成本的目的retz The imported sanitary grade high-performance centrifugal pump is a centrifugal pump designed entirely of stainless steel, including the motor which is also stainless steel. It not only optimizes the internal structure, impeller design, dead angle treatment, mechanical seal pressure balance design, but also the mechanical seal is completely in the flushing area. We have also optimized the external hygiene of the pump to ensure absolute internal hygiene and reduce dead spots on the outside. As there are no dead spots, it is very easy to be cleaned by CIP, sterilized by SIP, etc. In addition, we have maintained maximum flexibility in the combination of pump applications, such as the pump outlet angle being adjustable from 0 ° to 360 °, and the pump cover being connected with clamps. This ensures efficient pump maintenance and replacement of mechanical seals, reducing the need for highly specialized personnel without the need for special tools. Achieved the goals of high efficiency, hygiene, high reliability, and low cost due to completion

泵進出口的接連方式

液體在管道中會有能量的損失，分為沿程損失和局部阻力損失,管內越光滑,沿程損失越小,彎道越少，管徑變化越小，局部阻力損失越小,因而盡量不要采用粗糙的管道連接，也不要在連接中用管道急變的方式連接

進口衛生級高性能離心泵進口衛生級高性能離心泵

流量范圍flow ：1m3/h-120m3/h

揚程范圍 lift：70 M

溫度范圍 Temperature : -20到140℃

材質 material quality：SUS304,SUS316L(在材料的選用上泵體，泵蓋，葉輪等凡與物料接觸之零件由SUS316L或SUS304不銹鋼制造)

表面處理 Surface Treatment：≤ Ra0.8μm，≤ Ra0.6μm，≤ Ra0.4μm

機封 :   單機封、雙機封 Machine seal: single machine seal, double machine seal

進/出口連接  ： 螺紋、卡箍、法蘭、無菌法蘭 Inlet/outlet connections: threads, clamps, flanges, sterile flanges
