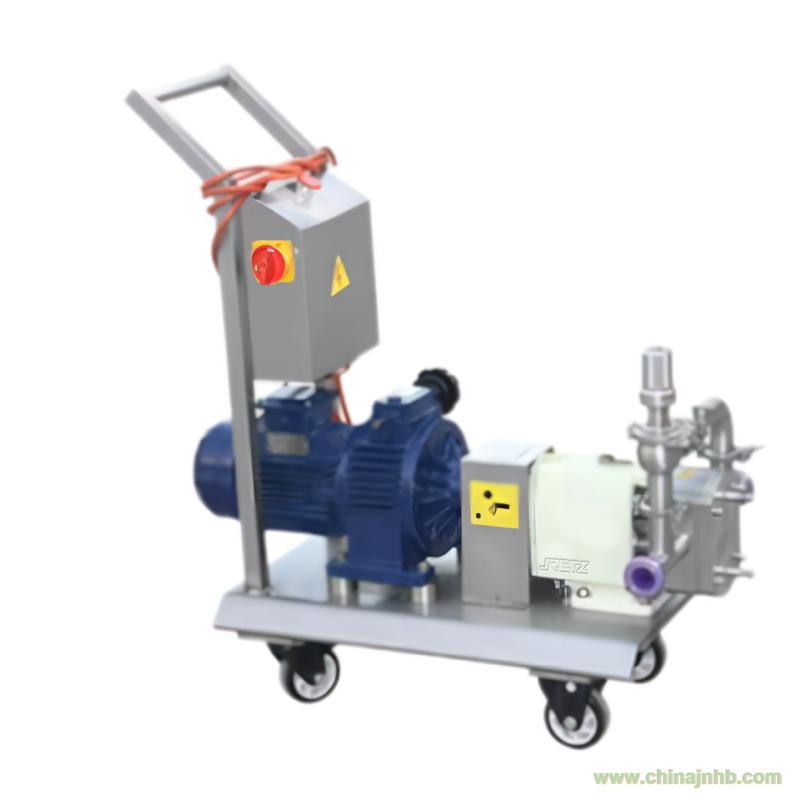

進口衛生級帶外置安全閥轉子泵以解決因泵出口管道堵塞或其他的儀器和設備導致壓力過高，該裝置可不損失物料的情況下保證管道壓力平穩和安全retz Imported sanitary grade rotor pump with external safety valve to solve the problem of high pressure caused by blockage of pump outlet pipeline or other instruments and equipment. This device can ensure stable and safe pipeline pressure without losing materials

注意：該裝置適用于流動性較好的物料 Note: This device is suitable for materials with good fluidity

多種電機選擇：Multiple motor options

1）寬電壓高效電機 IEC EN IE2高效等級(相當于中國二級能效)，PTC熱敏電阻 Wide voltage high-efficiency motor IEC EN IE2 efficiency level (equivalent to China's second level energy efficiency), PTC thermistor

2）防爆電機 Explosion proof motor

3）變頻電機 Variable frequency motor

電壓：AC 220V,380V,460V,690V,50HZ,60HZ

進口衛生級帶外置安全閥轉子泵選型參數

流量范圍Max.flow：90m3/H

壓力范圍Max.pressure：15bar

溫度范圍Max.Temperature：150℃

轉速范圍Max.rev：750 rpm

材質：ASTM 316L,1,.4404

內表面：Ra0.8μm

進出口連接方式：1）水平式、 2）垂直式 Inlet and outlet connection methods: 1) Horizontal, 2) Vertical

蝶形轉子(標準)；三葉轉子；二葉轉子；單蝶型轉子 Butterfly rotor (standard); Three leaf rotor; Two leaf rotor; Single butterfly rotor

機封：單端面機封(標準)、雙端面機封(選項)，材質 SIC/SIC,TC/TC Machine seal: single end machine seal (standard), double end machine seal (option), material SIC/SIC, TC/TC

適于CIP清洗和SIP殺菌 Suitable for CIP cleaning and SIP sterilization
