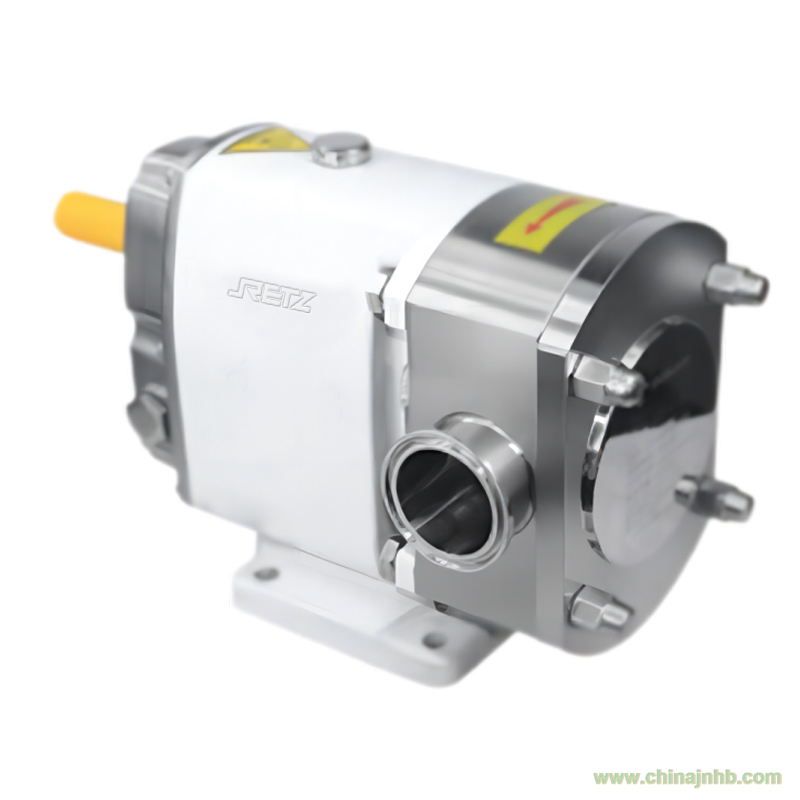

進口衛生級伺服電機驅動轉子泵設計有多種配置，其中分為標準配置，全不銹鋼配置，是一款正位移凸輪轉子泵，是根據美國3A-02-11 嚴格衛生要求設計的，非常適合于食品加工，飲料、果汁、乳制品、化妝品、制藥工業等各種高粘稠和低粘稠物料的輸送，也可以輸送含有固體顆粒物料，還可以應用在CIP和SIP系統上。進口衛生級伺服電機驅動轉子泵還具有其他容積泵所不具備的性能，如低脈沖現象、高壓力、旋轉雙向可逆、靈活功能組合retz The imported sanitary servo motor driven rotor pump is designed with various configurations, including standard configuration and all stainless steel configuration. It is a positive displacement cam rotor pump designed according to the strict hygiene requirements of 3A-02-11 in the United States. It is very suitable for conveying various high and low viscosity materials such as food processing, beverages, juice, dairy products, cosmetics, pharmaceutical industries, and can also transport materials containing solid particles, It can also be applied to CIP and SIP systems. This pump also has performance that other volumetric pumps do not have, such as low pulse phenomenon, high pressure, reversible rotation, and flexible functional combinations

進口衛生級伺服電機驅動轉子泵選型參數

流量Max.flow：90m3/ h / 395 GPM

壓力Max.pressure：15bar / 220 Psi

溫度Max.Temperature：150℃/ 302℉

轉速Max.rev：750 rpm

材質：316L，1.4404，ASME BPE 316L，1.4435NB2Fe≤0.5％

表面處理：表面處理：≤Ra0.8μm，≤Ra0.6μm，≤Ra0.4μm

富林克致力于作為流體控制專家，負責中國地區RETZ產品的營銷管理和服務，從而創造價值的企業，RETZ以“堅持更好的品質”為根本，以“持續實現具有創造性、高品質產品和服務的企業價值，為當今社會的繁榮作出貢獻”為企業理念
