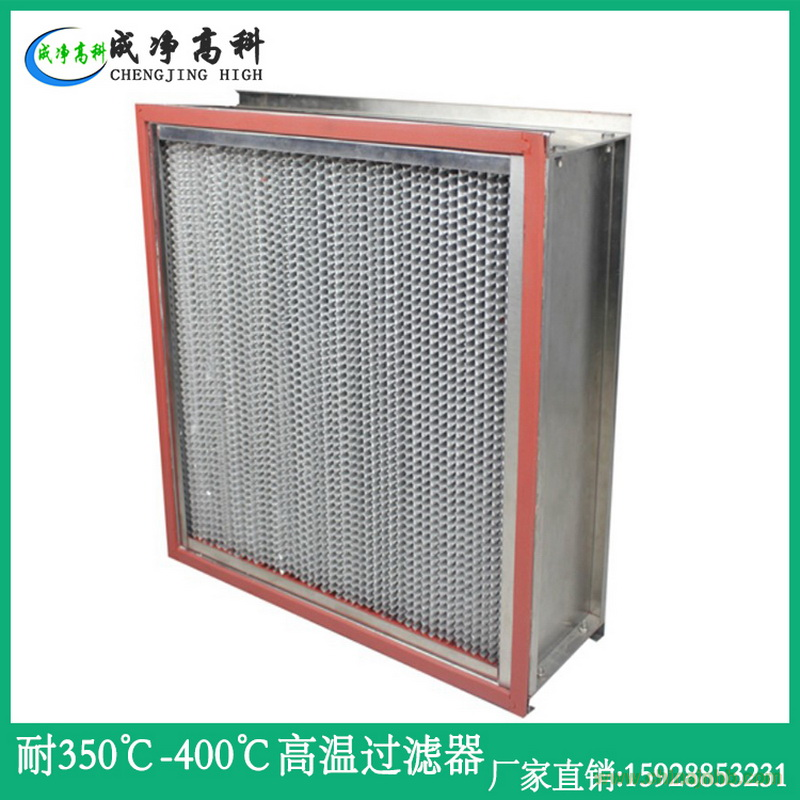

耐高溫高效空氣過濾器
High temperature resistant efficient air filter
遼寧沈陽304不銹鋼耐高溫空氣過濾器|遼寧沈陽201不銹鋼耐高溫空氣過濾器
特點 Features
●阻力低、容塵量大
●耐高溫性能好
●主要用于超凈烘箱等要求高溫空氣凈化設備和系統.
●Low resistance and large amount of dust
●High temperature resistant performance is good
●Mainly used in high temperature oven laminar air purification equipment and systems.
構成材料及運行條件 Materials and operating conditions
●框材：不銹鋼外框
●External frane：Stainless steel frame
●密封物：專用耐高溫密封膠
●Sealant：High temperature resistant sealant
●分隔物：鋁箔
●Filter media：Aluminum foil
●濾料：玻纖濾紙
●Filter media：Glass fiber
●使用溫度、濕度：250~400℃、80%以內
●Use the highest temperature, humidity：250~400℃、80%
型號尺寸及其他參數(Standard specification)
|
型號
model
|
外形尺寸
Outside dimensions
(mm)
|
額定風量
Rated air flow
(m3/h)
|
初阻力
Imitial resistance
(Pa)
|
效率（比色法）
Efficiency
(%)
|
容塵量
Dust capacity
(g)
|
|
CJ-H5-A1
|
484×484×220
|
1000
|
≤220
|
≥99.99
|
600
|
|
CJ-H5-A2
|
610×610×150
|
1000
|
≤220
|
≥99.99
|
350
|
|
CJ-H5-A3
|
630×630×220
|
1600
|
≤220
|
≥99.99
|
400
|
|
CJ-H5-A4
|
610×610×292
|
2200
|
≤220
|
≥99.99
|
600
|
*可要據用戶要求定制不同規格型號的過濾器
