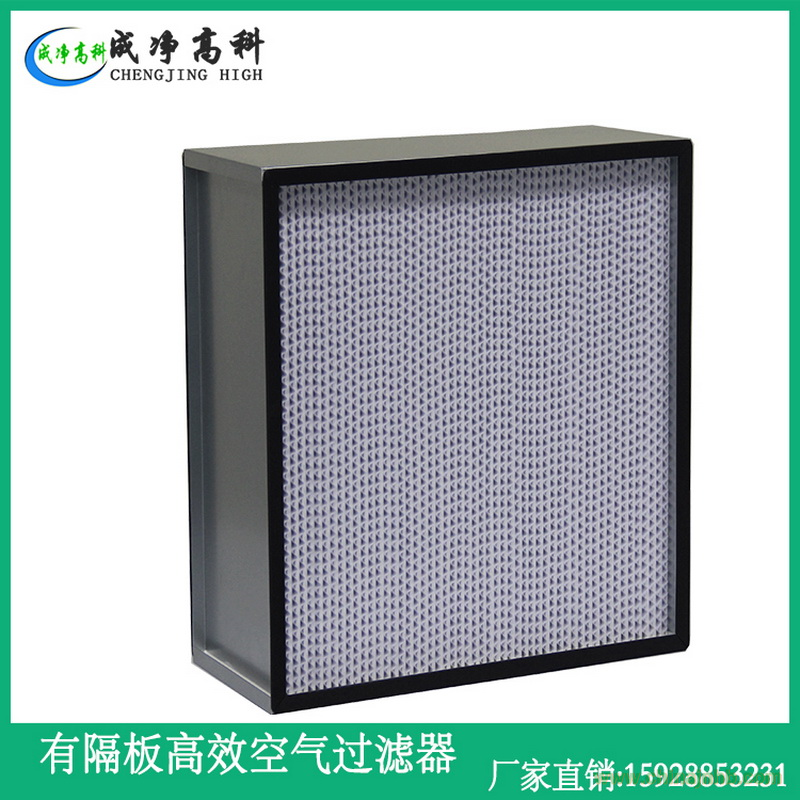

金屬框鋁隔板空氣過濾器
Hepa filter安徽合肥H13H14超細玻纖高效空氣過濾器|安徽合肥G3紙框初效空氣過濾器
特點Features
●效率高、阻力低、風速均勻性好
●適用于各種局部凈化設備和潔凈廠房的末端凈化
●High efficiency, low resistance, good uniformity winds
●Applicable to various local purification equipment and clean workshop end purification
構成材料及運行條件
Materials and operating conditions
●框材：鍍鋅板外框或鋁合金外框
●External frane：Galvanized the casing outside the box or aluminum alloy
●密封物：聚胺脂膠
●Sealant：Gel-glue
●分隔物：鋁箔
●Filter media：JiaoBanZhi
●密封條：醋酸乙酯
●Gasket：EVA
●濾料：玻纖濾紙
●Filter media：Glass fiber
●使用溫度、濕度：80℃、80%以內
●Use the highest temperature, humidity：80℃、80%
型號尺寸及其他參數
Standard specification
|
型號
model
|
外形尺寸
Outside dimensions
(mm)
|
額定風量
Rated air flow
(m3/h)
|
初阻力
Imitial resistance
(Pa)
|
效率（比色法）
Efficiency
(%)
|
容塵量
Dust capacity
(g)
|
|
CJ-H3-D1
|
305×305×150
|
250
|
≤220
|
≥99.99
|
200
|
|
CJ-H3-D2
|
320×320×220
|
400
|
≤220
|
≥99.99
|
350
|
|
CJ-H3-D3
|
484×484×150
|
600
|
≤220
|
≥99.99
|
400
|
|
CJ-H3-D4
|
484×484×220
|
1000
|
≤220
|
≥99.99
|
600
|
|
CJ-H3-D5
|
726×484×220
|
1500
|
≤220
|
≥99.99
|
900
|
|
CJ-H3-D6
|
968×484×220
|
2000
|
≤220
|
≥99.99
|
1200
|
|
CJ-H3-D7
|
610×610×150
|
1000
|
≤220
|
≥99.99
|
600
|
|
CJ-H3-D8
|
915×610×150
|
1500
|
≤220
|
≥99.99
|
900
|
|
CJ-H3-D9
|
1220×610×150
|
2000
|
≤220
|
≥99.99
|
1200
|
|
CJ-H3-D10
|
630×630×220
|
1600
|
≤220
|
≥99.99
|
900
|
|
CJ-H3-D11
|
945×630×220
|
2400
|
≤220
|
≥99.99
|
1400
|
|
CJ-H3-D12
|
1260×630×220
|
3200
|
≤220
|
≥99.99
|
1800
|
|
CJ-H3-D13
|
610×610×292
|
2200
|
≤220
|
≥99.99
|
1200
|
|
CJ-H3-D14
|
915×610×292
|
3300
|
≤220
|
≥99.99
|
1800
|
|
CJ-H3-D15
|
1220×610×292
|
4400
|
≤220
|
≥99.99
|
2400
|
*可要據用戶要求定制不同規格型號的過濾器
According to user requirements to customize different specifications and types of filters
