氣凝膠絕熱氈--FMA650

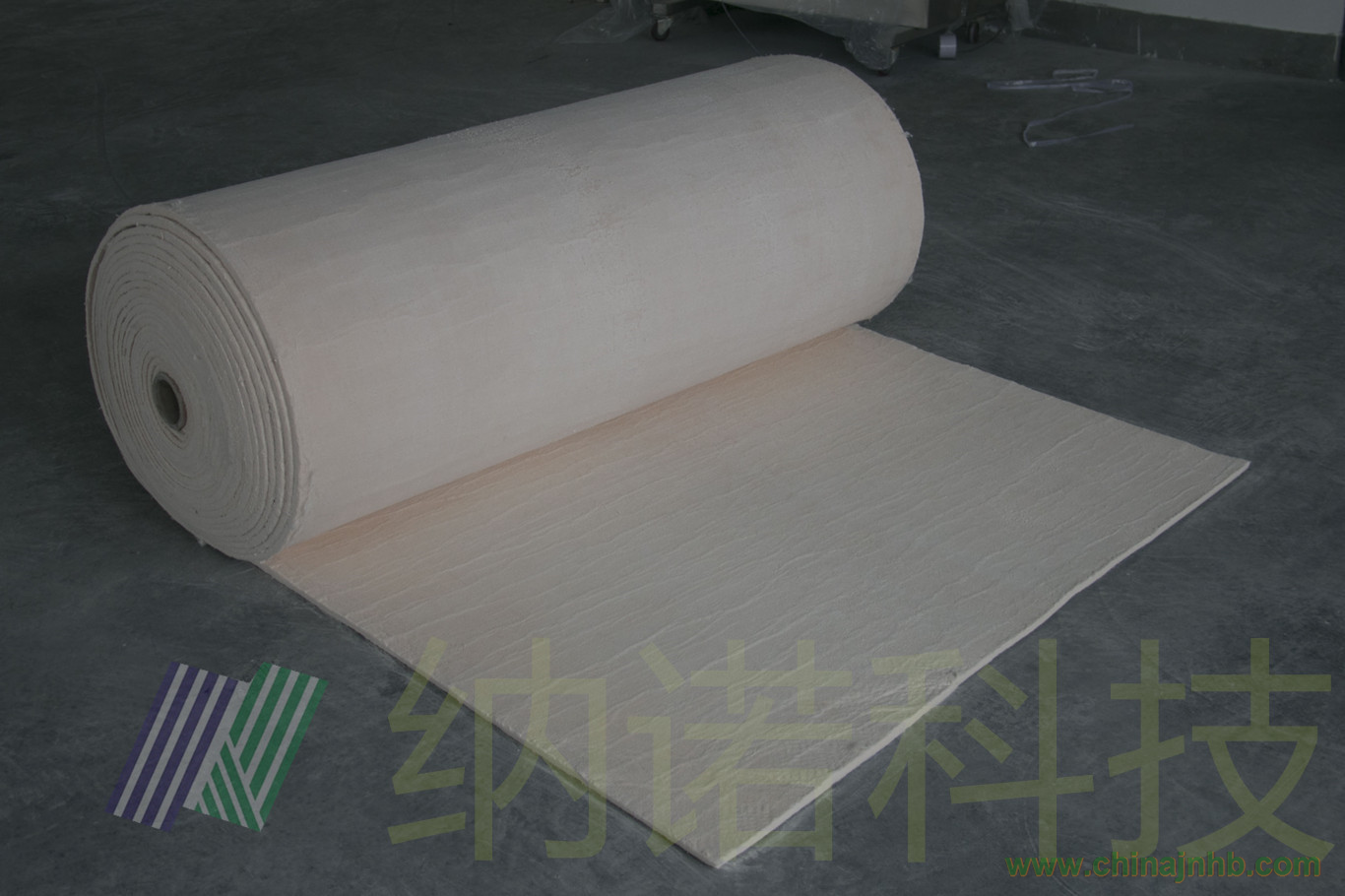

FMA650產品為例進行說明，該產品是通過特殊工藝將納米二氧化硅氣凝膠與無機纖維材料復合而成的一種柔性保溫氈。氣凝膠是迄今為止已知的導熱系數最低的固體材料，其特殊結構使得FMA650具有導熱系數低、防水防火、綠色環保等優越性能，是管道、設備保溫材料
選擇、保溫節能的革命性材料。
Using special nanotechnology, FMA650 combines
a silica aerogel with reinforcing fibers to deliver very low thermal
conductivity, low density and good flexibility in an environmentally safe
product. FMA650 provides excellent properties of waterproof,
sound absorption and shock absorption. FMA650 is an alternative to
the common, environment unfriendly, inferior insulation products, such as PU,
asbestos insulation felt, silicate fibers, etc.
物理性能
型號 產品厚度
寬度
長度
FMA650-3 3mm
1500mm
38m
FMA650-6 6mm
1500mm
38m
FMA650-10 10mm
1500mm
35m
使用溫度
：-50~650 ℃
顏色 ：米黃色
密度 ：210±20kg/m
導熱系數(25℃) ：≤0.017W/(m·K)
主要性能特點Properties
保溫絕熱
FMA650長期最高使用溫度達400℃，導熱系數僅為傳統材料的1/3~1/5，保溫后熱損失小，空間利用率高，高溫下性能優勢更加明顯。
Superior Thermal Performance
The maximum use temperature is 400℃, Its thermal conductivity is 1/3~1/5 of
common insulators, helping reduce heat loss and optimizing space utility. Its performance
is better under high temperature.
持久耐熱
氣凝膠獨有的三維網絡結構避免了其他保溫材在長期高溫或受到振動而產生燒結變形、顆粒堆積保溫性能急劇下降的現象。
Long service life
Unlike other
traditional insulation materials, aerogel ’s three- dimensional structure
inhibits sintering warpage, and particles stack which may occur under hot
temperature for long time. Therefore, aerogel insulation has long service life.
抗拉抗裂
有較好的柔性與抗拉強度，可抵抗施工時的拉伸和冷熱交替時線性收縮帶來的內應力。
Physically Robust
FMA650 has flexibility and high tensile
strength, resisting stretching and stress from linear contraction when
temperature changes.
環保防腐
產品由無機材料組成，不含對人體有害的物質。可溶出氯離子含量極小，對設備和管道無腐蝕。
Environmentally Safe
Composed of inorganic materials, FMA650 contains no hazard. Stripping
little chloridionm will cause no corrosion to the equipments and pipes
隔聲抗震
對設備進行保溫的同時，還可以起到吸聲降噪、緩沖震動等功能，提高環境質量，保護設備。
Sound Resistance and Shock Absorption
sound resistance and shock absorption help better the environment quality.
便于施工
產品密度低于200kg/m3，輕巧方便，易于切割，施工效率高 。
Easy to Install
Extremely low density (<200kg/m3)
contributes to easy-to-cut and easy-to-install
