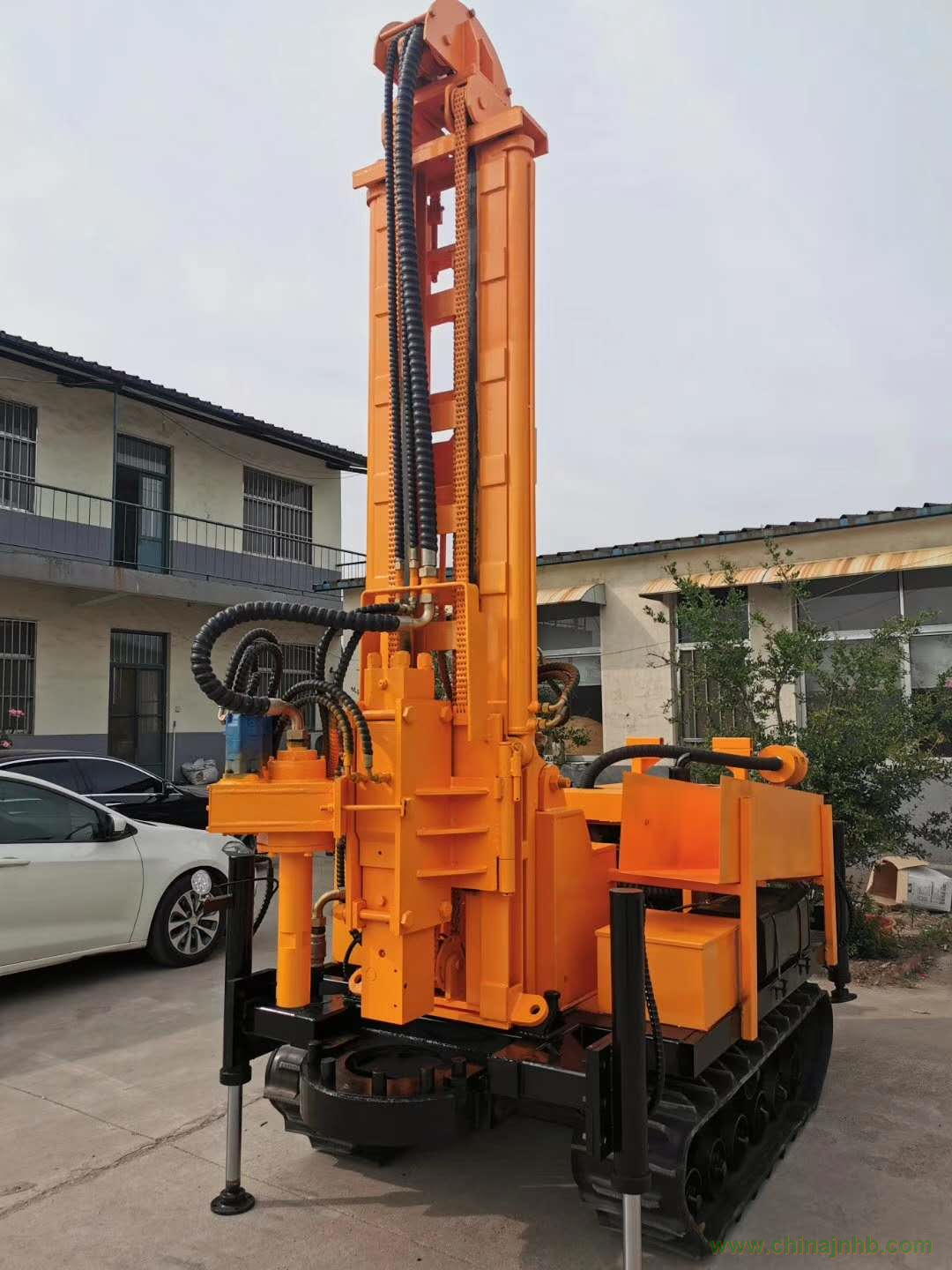

環境取樣鉆機 履帶錘擊式勘探鉆機
履帶錘擊式勘探鉆機是根據市場需要研發的新一代多功能鉆機。鉆機由兩個動力頭：錘擊功能土壤取樣；旋轉動力頭鉆孔。錘擊取土樣工作要率有明顯提升。
|
型號Model
|
HWS-50
|
|
整機重量（T )Overall weight
|
3.5
|
|
外形尺寸(mm )Dimension
|
3400*1500*2400
|
|
鉆孔直徑（mm )Drilling diameter
|
130-245
|
|
鉆孔深度Drilling depth
|
150
|
|
一次推進長度（mm )One-time advance length of the drill(mm)
|
3000
|
|
行走速度（km/h )Traveling speed
|
2.5
|
|
單機爬坡能力（max )Climbing ability
|
25
|
|
最小離地間隙Minimum Ground Clearance
|
250
|
|
工作氣壓（mpa ) Working Air Pressure
|
1.45 - 2.5
|
|
耗氣量I Pl3Zrain)Air consumption
|
15 - 27
|
|
主機功率Main machine power
|
42/云內 Yunnei
|
|
回轉(rpm) Rotary Speed
|
38 - 80
|
|
回轉扭矩（Nm )Rotary torque
|
4000-5000
|
