美國杜苼軟水樹脂T-42
Tulsion? T-42 --------------均粒強酸形陽樹脂 , 氫 H
+
/ 鈉 Na+
均粒強酸性陽離子適用于超 純水的可再生混床系統

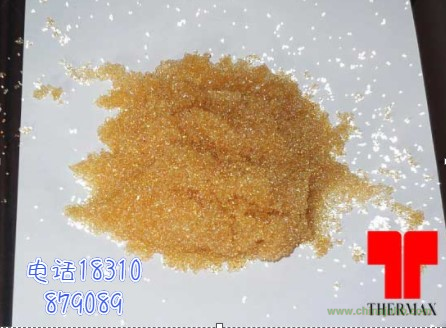

Tulsion® T- 42強酸型陽性離子交換樹脂 ,是一款有較高的交換容量 ,及同時
擁有絕佳的物理及化學穏定品貭。可應用於汽電共生發電廠冷凝水處理及混床系統, 去
除水中的陽性離子 。
Tulsion? T-42其均勻的顆粒直徑 , 能取代傳統的離子交換樹脂 , 並可以減少壓 力損, 可以和 Tulsion® A-23 一起搭配使用於 2B3T 及超純水可再生的混床。
TYPICAL CHARACTERISTICS – 基本特性
型式(Type) : Strong acid Cation exchange resin
主體結構(Matrix structure) : Cross linked polystyrene
功能基(Functional group) : Sulphonic
物理形式(Physical form) : Moist spherical beads.
離子型式(Ionic form) : Hydrogen (H+
)
粒徑 Particle size ( 英國 Mesh)
均勻係數(Uniformity Coefficient)
平均粒徑(Mean bead Size (mm))
: Particle less than 0.3mm max. 1%
1.25Min
0.58 ( +/- 0.05)
全交換容量(Total Exchange Capacity) : 1.80 meq/ ml (min.) in H+
form
含水份(Moisture content (approx.)) : Approximately 53% in H+
form
pH 范圍(pH range) : 0 to 14
膨脹係數(Swelling (approximately)) :- 7% from Na+ to H+
for
密度(Backwash settled density) : 800-840 g/l in H+
form
830-870 g/l in Na+
form
允許溫度(Maximum temp. stability) : 120°C in H+
form
140°C in Na+
form
溶解率(Solubility) : Insoluble in all common solvents.
OPERATION CONDITIONS – 操 作 條 件
最大操作溫度(Operating temperature , max
0 C) : 120
操作 pH 范圍(Operating pH range ) : 0 – 14
最小樹脂床高度(Bed depth , mini mm) : 800
最大(Service flow rate ,Maxi ) : 120 m3
/hr/ m3
逆洗水量(Backwash flow rate) : 9 to 25 m3
/hr/ m3
逆洗浮動空間(Back wash expansion) : 40 to 75%
再生藥剤(Regenerant ) : HCl, H2SO4 for H+
form,
再生藥劑用量(Regeneration levels. ) : 30 to 120 gms HCl/ lit.
40 to 250 gms H2SO4/ lit
再生藥劑濃度(Regeneration concentration) : 3 - 5% HCl, 1.5 to 3% H2SO4
最少通再生藥劑時間(Regeneration Contact time, mini) :- 20 min.
再生流量(Regeneration flow rate ) : 5 to 16 m3
/hr/ m3
Regeneration slow rinse : 2 BV mini.
快洗用水(Fast Rinse ) : Service flow rate.
快洗水量(Fast Rinse Volume) : 2 to 3 BV
