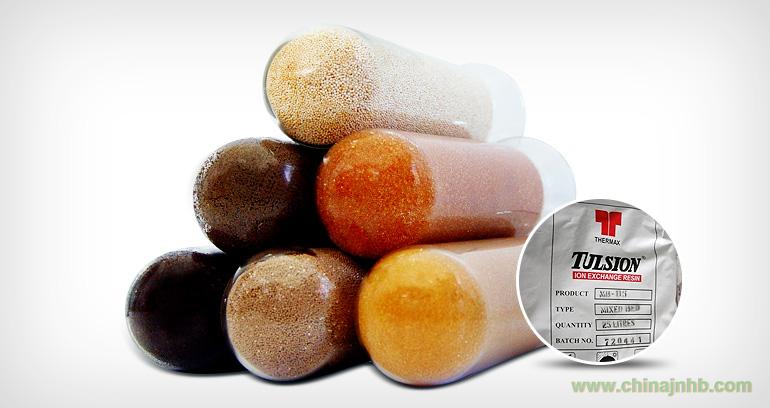

Tulsion® MB-106 up 為高階核子級拋光樹脂， 是由核子級強酸型陽離子Tulsion® T-46 及核子級強堿型陰離子 Tulsion® Tulsion® A-33 以1:2 體積比的劑量比例 , 預先混合的混床級離子交換樹脂,專門提供給超純水系統拋光用，具有高的交換容量及優越 的物理特性。適合用于電子產業 ，生產半導體及映像管產業，實驗室，激光，高精儀器，醫用行業等需要超純水的行業，以及核電廠等使用。在全球我們有數十家 核電廠使用我們的拋光樹脂。
YPICAL CHARACTERISTICS ---------------------------------------- 基 本 特 性
|
|
TULSION®T-46 (陽)
|
TULSION®A-33 (陰)
|
|
型式(Type)
|
強酸性陽離子交換樹脂 (Strong acid Cation exchange resin)
|
強堿性陰離子交換樹脂 (Strong base Anion exchange resin)
|
|
主體結構(Matrix Structure)
|
苯乙烯(Cross linked polystyrene)
|
苯乙烯(Cross linked polystyrene)
|
|
功能基 (Functional Group)
|
硫酸基(Sulfonic acid)
|
4級胺(Quaternary ammonium Type I)
|
|
物理性貭(Physical Form)
|
球狀顆粒(Moist spherical beads)
|
球狀顆粒(Moist spherical beads)
|
|
離子型式(Ionic form supplied)
|
氫(Hydrogen)
|
氫氧(Hydroxide)
|
|
粒徑范圍(U.S.mesh in wet)
|
16 to 50
|
16 to 50
|
|
粒度范圍 (Particle Size)
|
0.3 to 1.2 mm
|
0.3 to 1.2 mm
|
|
微粒含量(Fines Content)
|
穿過US 50 Mesh小于0.5% (Less than
0.5% passing through 50 U.S.mesh)
|
穿過US 50 Mesh小于0.5% (Less than
0.5% passing through 50 U.S.mesh)
|
|
總交換容量
(Total Exch. Capacity)
|
1.8 meq/ml minimum of
99% in hydrogen form
|
1.0 meq/ml minimum of 90% in hydroxide
form and less than 1% in chloride form
|
|
PH范圍 (pH Range)
|
0 to 14
|
0 to 14
|
|
允許溫度 (Temp. Stability)
|
120°C
|
60°C
|
|
溶解率 (Solubility)
|
Insoluble in all common solvents
|
Insoluble in all common solvents
|
|
溶出有機物(Organic leachable)
|
Less than 0.2 mg KMNO4
per ml of wet resin
|
Less than 0.2 mg KMNO4 per ml
of wet resin
|
|
密度Backwash settled density
|
Approx.750 gm/liter
|
Approx.750 gm/liter
|
|
不純物(Impurities)
|
Fe=50 ppm(max)
|
Fe=50 ppm(max)
|
|
|
Cu=50 ppm(max)
|
Cu=50 ppm(max)
|
|
|
Pb=50 ppm(max)
|
Pb=50 ppm(max)
|
|
球粒強度(Bead strength)
|
Avg. not less than 300g/bead by Chatillon test (ASTM Standard)
|
測試（TESTING）： TULSION® MB-106 UP
離子交換樹脂的抽樣和測試是按標準的測試程序，即ASTMD - 2187和IS - 7330，1998.
包裝（PACKING）： TULSION® MB-106 UP
|
Super Sack
|
1000 lit
|
Super Sack
|
35 cft
|
|
MS drums
|
180 lit.
|
MS drums
|
7 cft
|
|
HDPE lines Bags
|
25 lit.
|
HDPE lines Bags
|
1 cft
|
若需要更多資料，請與我公司技術人員聯系！
