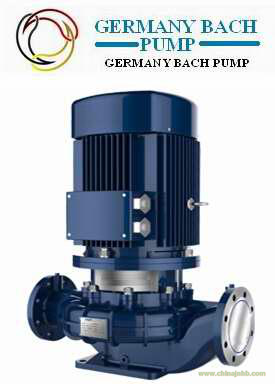

進口立式管道泵
進口立式管道泵產品特點：
葉輪直接安裝在電機的加長軸上，軸向尺寸短，結構緊湊，泵與電機軸承配置合理，能有效地平衡泵運轉產生的徑向和軸向負荷，從而保證了泵的運行平穩，震動噪音低。
軸封采用機械密封或機械密封組合，采用進口鈦合金密封環、中型耐高溫機械密封和采用硬質合金材質，耐磨密封，能有效地增長機械密封的使用壽命。
安裝檢修方便，無需拆動管路系統，只需卸下泵聯體螺母即可抽出全部轉子部件。
可根據使用要求即流量和揚程的需要采用泵的串、并聯運行方式。
可根據管路布置的要求采用泵的豎式和橫式安裝。
進口立式管道泵應用領域：
供輸送不含固體顆粒，具有腐蝕性，粘度類似于水的液體，適用于石油、化工、冶金、電力、造紙、食品、 制藥和合成纖維等部門
進口立式管道泵工作條件：
吸入壓力≤1.0MPa，或泵系統最高工作壓力≤1.6MPa，即吸入口壓力+泵揚≤1.6MP泵靜壓試驗壓力為≤2.5MPa，訂貨時請注明系統工作壓力。泵系統工作壓力大1.6MPa時應在訂貨時另行提出，以便在制造時泵的過流部分和聯接部分采用鑄鋼材料。 2.環境溫度＜40℃，相對濕度＜40% 3. 所輸送介質中固體顆粒體積含量不超過單位體的0.1，粒度＜0.2mm。
進口立式管道泵技術參數：
最大流量：600m3/h最高揚程：155m
額定轉速：1450~2900rpm(50HZ)，1750~3500rpm(60HZ)
額定溫度：-10℃~105℃ 最大工作壓力：1.6MPa
進口立式管道泵德國巴赫BACH售后服務：
一流的服務鑄就一流的企業讓客戶無后顧之憂。
1、按合同要求提供產品的合格證、銘牌、檢驗報告、產地證名、安裝說明書等。
2、顧客在驗收產品過程中，如出現與合同要求不符時，我司接到顧客通知后兩小時內給予處理。
3、我司提供十二個月以上產品質保期，時間從驗收合格之日起計算。
4、在正確安裝和使用下，出現產品質量問題，本公司將負責到底。
選擇德國巴赫的四大理由：
1：進步性 持續性
回顧巴赫在中國的快速進步性 每年均高速增長，可預見一家大型的生產銷售企業的建立與發展，也必將在中國的閥門市場乃至機械行業的有所建樹。
2：可靠性
德國巴赫的可靠性與產品之性能是公司經營理念重要組成部分。如期發貨，持續經營，高質量， 均經過嚴格的全面測驗。 這就是巴赫為何能高速發展，并且能提供越來越好的高質量產品，最優質服務的原因。
3： 價格
現代化工廠高端自動化數控生產線確保閥門與其配件價格合理，品質優良。
和持續不斷地投資于人力，設備廠房，為用戶提供性價格比高，品質優良的閥門。
4：客戶價值觀
通過集中采購 可以降低總體的采購成本。
便捷的采購，有助于客戶優化配置人力資源，達到精簡高效。
借助巴赫充足的庫存最小化客戶的庫存投入。
高品質的閥門將幫助避免因偽劣產品而導致的停產 停工 誤工。
Import vertical pipe pumps
Characteristics of imported vertical pipe pumps:
Impeller installed directly on the extension of the motor shaft, short axial dimensions, compact structure, the pump and motor bearing reasonable configuration, can effectively balance the radial and axial load of pump operation, so as to ensure the smooth operation of the pump, low vibration noise.
Adopting the combination of mechanical seal or mechanical seal shaft seal adopts imported mechanical seal and sealing ring, medium, high temperature resistant titanium alloy using hard alloy material, wear-resistant sealing, can effectively increase the service life of mechanical seal.
The installation and overhaul is convenient, without the removal of the pipe system, the entire rotor parts can be removed by removing the pump assembly nut.
According to the requirement of use, the flow and the lift need to use the pump series, parallel operation mode.
The vertical and horizontal installation of the pump can be adopted according to the requirements of piping layout.
Application field of imported vertical pipe pump:
It is used in petroleum, chemical industry, metallurgy, electric power, paper making, food, pharmaceutical and synthetic fiber etc
Working conditions of imported vertical pipe pump:
The suction pressure is less than 1.0 MPa, or the maximum working pressure of the pump system is less than or equal to 1.6 MPa, i.e., suction inlet pressure + pump lift is less than or equal to 1.6 MP pump static pressure test pressure is less than 2.5 MPa. Please indicate system working pressure when ordering. When the pump system is under pressure of 1.6 MPa, it shall be put forward separately when ordering, so that cast steel materials are used in the overflow part and the connecting part of the pump. < 2. Environmental temperature 40 ℃, relative humidity < 3. 40% solids volume content in the medium is not more than 0.1, the unit body size < 0.2 mm.
Technical parameters of imported vertical pipe pump:
Maximum flow: 600m3 / h maximum lift: 155m
Rated speed: 1450 ~ 2900rpm (50HZ), 1750 ~ 3500rpm (60HZ)
The rated temperature: - 10 ℃ ~ 105 ℃ maximum working pressure: 1.6 MPa
Import vertical pipe pump German BACH after sales service:
First-class service casts the first-class enterprise to make the customer have no worries.
1. Supply the certificate of qualification, nameplate, inspection report, certificate of origin and installation instruction of the products according to the contract requirements.
2. In the process of acceptance of the products, if the customer is not in conformity with the contract requirements, we shall give the customer the treatment within two hours after receiving the notice from the customer.
3. We provide the product quality guarantee period of over 12 months, and the time will be calculated from the date of acceptance.
4. With the correct installation and use, the company will be responsible for the product quality problems.
Four big reasons to choose Bach in Germany:
1: progressive sustainability
Review Bach rapidly progressive growth each year in China, a large foreseeable production and sales of the establishment and development of the enterprise, will the valve market in China and even the machinery industry.
2. Reliability
The reliability of German Bach and the performance of products is an important part of the company's business philosophy. Delivery on schedule, continuous operation, high quality, all passed strict comprehensive test. This is why Bach is developing at a high speed and can provide better and better quality products and services.
3: price
Modern factory high-end automatic numerical control production line to ensure valve and its accessories are reasonable price, good quality.
And continuous investment in manpower, equipment plant, providing customers with high quality and high quality valves.
4: customer values
Centralized procurement reduces overall procurement costs.
Convenient procurement, help customers optimize the allocation of human resources, achieve streamlined and efficient.
Minimize customer inventory by using Bach's ample inventory.
High quality valves will help to avoid downtime due to shoddy products.
