河北北重鑄鐵平臺生產廠家，鑄造鑄鐵平臺價格

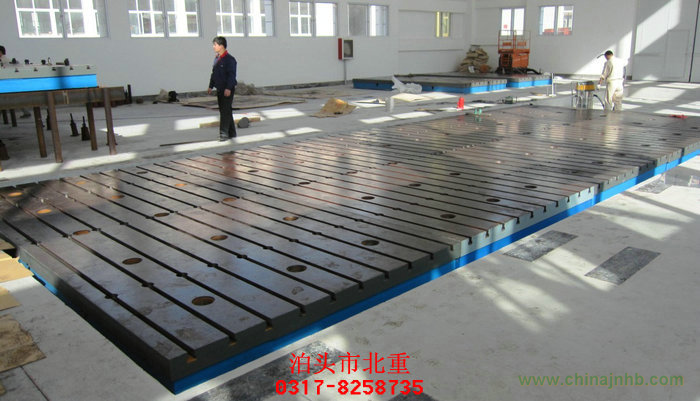

Inspection surface plate is
used as the datum for measurement of the machinery parts’ geometric
tolerance,such as flatness, parallelism, straightness and more. It is also can
be used for precision inspection, marking out (layout), and tooling setup.
鑄鐵平臺材質: 材料為高強度鑄鐵HT200-250工作面硬度為HB160—210。經過兩次處理(人工退火600度----700度或自然時效2---3 年)，使該產品的精度穩定，耐磨性能好。
The material of Cast Iron
Inspection Plate is high-strength cast iron Ht200-250 and the hardness of the
working surface is HB 160-210. After
artificial heat aging treatment(
Artificial annealing temperature600℃to700℃or
2-3 years natural aging) the internal stress was totally eliminated, so the
surface plate have stable accuracy and good wear-resisting performance.
鑄鐵平臺精度：按國家標準計量檢定規程執行，分別為0，1，2，3級四個級別
The Cast Iron Surface Plate
can be classified as Grade 0,1,2,3,4 according to the national standard
metrological verification procedures
鑄鐵平臺退火種類常見的T型槽鑄鐵平臺[2]退火工藝有：再結晶鑄鐵平臺退火，去應力鑄鐵平臺退火，球化鑄鐵平臺退火，完全鑄鐵平臺退火等。鑄鐵平臺退火的目的：主要是降低金屬材料的硬度，提高塑性，以利切削加工或壓力加工，減少殘余應力，提高組織和成分的均勻化，或?yàn)楹蟮罒崽幚碜骱媒M織準備等。
There are many annealing type
for Cast Iron Surface Plate, such as stress relief annealing, recrystallization
annealing, spheroidizing annealing, full annealing, etc. The purpose of
annealing process is to reduce the hardness of metal materials, to improve the
plasticity, contributing to cutting and pressure machining process. It also
can reduce the residual stress, improve
the organization and composition of the homogenization.
