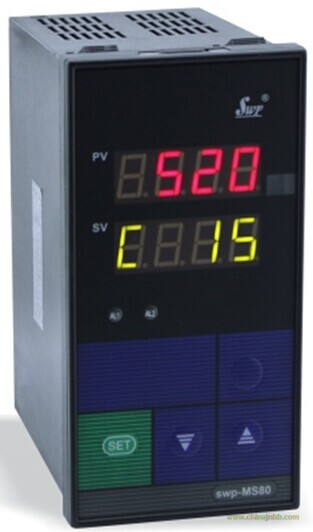

SWP-MS80溫度巡檢儀
產品概述
SWP-MS80系列多路巡檢控制儀用于工業控制系統多測量點的巡回檢測、顯示和報警。廣泛適用于航空、石油、化工、水泥廠、制藥廠、制糖廠、造紙廠、自動化安裝工程、染色生產設備等行業中。
技術參數
|
規 格
|
說 明
|
|
使用
環境
|
環境溫度
|
0~50℃
|
|
相對濕度
|
≤85RH 避免強腐蝕氣體
|
|
供電電壓
|
常規型 AC220V+10-15%（50Hz±2Hz）
特殊型 AC85~260V——開關電源 DC24V ±2V——開關電源
|
|
功耗
|
·≤6W（AC220V 線性電源供電）
·≤6W（AC85~260V 開關電源供電）
·≤6W（DC24V 開關電源供電）
|
|
輸入
信號
|
模擬量
|
熱電偶：標準熱電偶——B、S、K、E、J、T、WRe3-25等
|
|
電阻：標準熱電阻——Pt10、Pt100.1、Cu50、Cu100 等遠傳壓力電阻等
|
|
電流：0~10mA、4~20mA、0~20mA等——輸入阻抗≤250Ω
|
|
電壓：0~5V、1~5V、mV等——輸入阻抗≥250KΩ
|
|
開關量
|
脈沖信號：波形——矩形、正弦或三角波 輻度——大于4V（或根據用戶要求任定）
范圍——0~10KHz（或根據用戶要求任定）
|
|
接點信號：電接點輸入信號
|
|
輸出
信號
|
模擬量輸出
|
DC 0~10mA（負載電阻≤750Ω） DC 4~20mA（負載電阻≤500Ω）
DC 0~5V（負載電阻≥250KΩ） DC 1~5V（負載電阻≥250KΩ）
|
|
開關量輸出
|
繼電器控制輸出-繼電器ON/OFF帶回差。AC 220V/3A DC 24V/5A（阻性負載）
可控硅控制輸出-SCR（可控硅過零觸發脈沖）輸出，0.5A/400V
固態繼電器輸出-SSR（固態繼電器控制信號）輸出，6~24V/30mA（電壓不可調）
雙向可控硅輸出-SOT可控硅輸出，5A/400V
|
|
通訊輸出
|
接口方式——標準串行雙向通訊接口 RS-485、 RS-232 C、RS-422等
波特率——300~9600bps 儀表內部自由設定
|
|
饋電輸出
|
DC 24V 負載≤30mA
|
|
測量精度
|
±0.2%FS±1字或±0.5%FS±1字
|
|
分辨率
|
±1字
|
|
測量范圍
|
-1999~9999字
|
|
顯示方式
|
-1999~9999字測量值顯示 -1999~9999字設定值顯示 發光二級管工作狀態顯示
|
|
方式
|
控制/報警方式為帶回差上限或下限報警(用戶可自由設定)
|
|
控制精度
|
±1字
|
|
溫度補償
|
0~50℃數字式溫度自動補償
|
|
打印控制
|
可選擇直接配接各型串打印機(如LQ-300K,TPuP系列微打等)，打印接口為RS-232C
|
|
打印精度
|
同儀表精度
|
|
參數設定
|
面板輕觸式按鍵設定 、參數設定值斷電后永久保存、參數設定值密碼鎖定
|
|
保護方式
|
輸入回路斷線報警(熱電偶或電阻輸入時)、斷電器輸出狀態LED指示、輸入超/欠量程報警、
電源欠壓自動復位、工作異常自動復位（Watch Dog）
|
