上海吉邁閥門制造有限公司主要生產≦CCQ型氣動超高真空插板閥≧也是國內真空閥門生產商之一。公司經營范圍:閥門,管件,流體設備的生產，加工，銷售，管道配件，建筑材料，五金交電，自控設備的銷售，從事貨物及技術的進出口業務！歡迎新老客戶來電，來函，我們將竭誠為您提供滿意的服務！

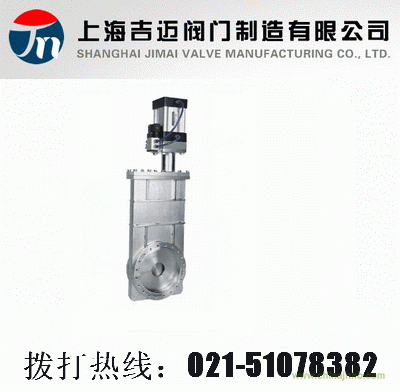

CCQ型－氣動超高真空插板閥
|
|
|
■ |
CCQ型氣動超高真空插板閥是通過電磁換向閥改變氣路方向，控制執行氣缸驅動閥板作上下運動，達到閥門的開啟或關閉。閥門用于接通或切斷真空管路中的氣流。適用介質為純凈空氣和非腐蝕性氣體。
帶反饋信號裝置。 |
|
|
| ■ |
CCQ
Pneumatic Ultra-high Vacuum Gate Valve |
|
|
■ |
CCQ pneumatic ultra-high vacuum gate valve uses solenoid directional valve to change the direction of air passage, and controls the actuating cylinder to drive the valve disc up and down to make the valve opened or closed. It is used to put through or cut off the air passage in vacuum pipeline. Applicable medium can be pure air and noncorrosive gases.
With signal feedback device. |
|
|
| ■ |
主要技術性能
Main Technical Performance |
|
|
■
■
■ |
| 適用范圍：Applicability |
105～1.3×10-7Pa |
| 閥門漏率：Valve Leak Rate |
≤1.3×10-7Pa.L/S.(DN≤200)
≤6.7×10-7Pa.L/S.(DN≥250) |
| 適用溫度：Applicable Temperature |
-30～+150℃ |
閥門開啟時閥板兩側的壓差：
The differential pressure between the two sides of valve disc upon valve opening: |
≤2.7×103Pa. |
| 氣源壓力：Annoy pressure |
0.4～0.6MPa |
|
|
|
| ■ |
主要零件材料
Materials of Main Parts |
|
|
■
■ |
閥體、閥板：不銹鋼
密封件：氟橡膠、波紋管(軸封)、丁腈橡膠。
Body, and disc: stainless steel
Sealing element: Viton, bellows(shaft seal), NBR |
|
|
| CONSTRUCTION FIGHTS(mm) |
|
| ■ |
外形及連接尺寸(mm)
Overall and Connection Dimensions(mm) |
|
|
|
|
Model
型號
|
DN
|
A
|
H
|
D
|
Do
|
D1
|
D2
|
D3
|
L
|
L1
|
G
|
E
|
n-d
|
法蘭標準
|
|
CCQ-50
|
50
|
60
|
92
|
89
|
72.4
|
61.6
|
55.6
|
|
515
|
153
|
220
|
65
|
8-M8
|
GB6071
|
|
CCQ-63
|
63
|
65
|
105
|
114
|
92.1
|
82.6
|
76.6
|
|
566
|
180
|
220
|
80
|
8-M8
|
|
CCQ-80
|
80
|
65
|
130
|
130
|
110
|
99
|
93
|
|
603
|
200
|
220
|
80
|
16-M8
|
|
CCQ-100
|
100
|
70
|
152
|
152
|
130.2
|
120.7
|
114.7
|
|
653
|
267
|
220
|
95
|
16-M8
|
|
CCQ-150
|
150
|
70
|
202
|
202
|
181
|
171.5
|
165.5
|
|
771
|
350
|
270
|
95
|
20-M8
|
|
CCQ-200
|
200
|
80
|
251
|
253
|
231.8
|
222.3
|
216.6
|
|
889
|
424
|
270
|
115
|
24-M8
|
|
CCQ-250
|
250
|
85
|
300
|
314
|
288
|
308
|
275
|
271
|
1127
|
574
|
350
|
140
|
24-M10
|
JB5278
|
|
CCQ-300
|
300
|
85
|
352
|
365
|
338
|
353
|
323
|
318
|
1197
|
613
|
420
|
140
|
32-M10
|
|
|
CCQ-320
|
320
|
85
|
372
|
385
|
357
|
379
|
344
|
340
|
1197
|
613
|
440
|
140
|
36-M10
|
JB5278
|
|
CCQ-400
|
400
|
110
|
456
|
497
|
454
|
480
|
440
|
436
|
1666
|
810
|
536
|
180
|
36-M12
|
|
CCQ-500
|
500
|
135
|
595
|
590
|
555
|
580
|
540
|
536
|
1835
|
870
|
640
|
220
|
40-M12
|
|
CCQ-630
|
630
|
135
|
690
|
700
|
658
|
680
|
639
|
635
|
1930
|
960
|
780
|
280
|
40-M16
|
|
CCQ-800
|
800
|
150
|
880
|
890
|
855
|
880
|
835
|
831
|
2200
|
1100
|
950
|
350
|
60-M16
|
|
