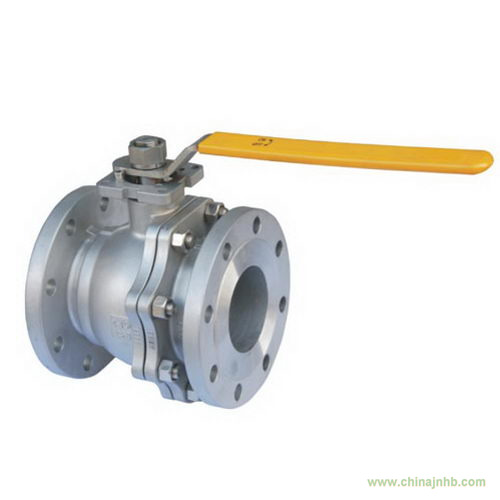

美標球閥Q41F-150LB圖片
美標球閥 Q41F-150LB
公稱
壓力 |
公稱
通徑 |
d |
L |
D |
D1 |
D2 |
b |
f |
Z-Φd |
H |
W |
Class
150 |
1/2" |
13 |
108 |
89 |
60.5 |
35 |
11.5 |
1.6 |
4-16 |
79 |
135 |
| 3/4" |
19 |
117 |
98 |
70 |
43 |
11.5 |
1.6 |
4-16 |
84 |
135 |
| 1" |
25 |
127 |
108 |
79.5 |
51 |
12 |
1.6 |
4-16 |
95 |
170 |
| 1-1/4" |
32 |
140 |
117 |
89 |
64 |
13 |
1.6 |
4-16 |
103 |
170 |
| 1-1/2" |
38 |
165 |
127 |
98.5 |
73 |
15 |
1.6 |
4-16 |
111 |
200 |
| 2" |
51 |
178 |
152 |
120.5 |
92 |
16 |
1.6 |
4-19 |
120 |
200 |
| 2-1/2" |
64 |
190 |
178 |
139.5 |
105 |
18 |
1.6 |
4-19 |
153 |
300 |
| 3" |
76 |
203 |
190 |
152.5 |
127 |
19 |
1.6 |
4-19 |
163 |
300 |
| 4" |
102 |
229 |
229 |
190.5 |
157 |
24 |
1.6 |
8-19 |
182 |
400 |
| 5" |
127 |
356 |
254 |
216 |
186 |
24 |
1.6 |
8-22 |
260 |
500 |
| 6" |
152 |
394 |
279 |
241.5 |
216 |
26 |
1.6 |
8-22 |
280 |
800 |
| 8" |
203 |
457 |
343 |
298.5 |
270 |
29 |
1.6 |
8-22 |
- |
1100 |
Class
300 |
1/2" |
13 |
140 |
95 |
66.5 |
35 |
15 |
1.6 |
4-16 |
79 |
135 |
| 3/4" |
19 |
152 |
117 |
82.5 |
43 |
16 |
1.6 |
4-19 |
84 |
135 |
| 1" |
25 |
165 |
124 |
89 |
51 |
18 |
1.6 |
4-19 |
95 |
170 |
| 1-1/4" |
32 |
178 |
133 |
98.5 |
64 |
19 |
1.6 |
4-19 |
103 |
170 |
| 1-1/2" |
38 |
190 |
156 |
114.5 |
73 |
21 |
1.6 |
4-22 |
111 |
200 |
| 2" |
51 |
216 |
165 |
127 |
92 |
23 |
1.6 |
4-22 |
120 |
200 |
| 2-1/2" |
64 |
241 |
190 |
149 |
105 |
26 |
1.6 |
8-19 |
153 |
300 |
| 3" |
76 |
283 |
210 |
168.5 |
127 |
29 |
1.6 |
8-22 |
163 |
300 |
| 4" |
102 |
305 |
254 |
200 |
157 |
32 |
1.6 |
8-22 |
182 |
400 |
| 5" |
127 |
381 |
279 |
235 |
186 |
35 |
1.6 |
8-22 |
260 |
500 |
| 6" |
152 |
403 |
318 |
270 |
216 |
37 |
1.6 |
12-22 |
280 |
800 |
| 8" |
203 |
502 |
381 |
330 |
270 |
42 |
1.6 |
12-25 |
- |
1100 |
'.Q41F不銹鋼
美標球閥，法蘭
美標球閥，球閥只需要用旋轉90度的操作和很小的轉動力矩就能關閉嚴密。完全平等的閥體內腔為介質提供了阻力很小、直通的流道。通常認為球閥最適宜直接做開閉使用，但近來的發展已將球閥設計成使它具有節流和控制流量之用.'
| 名稱 |
WCB類 |
CF8類 |
CF3類 |
CF8M類 |
CF3M類 |
| 閥體左體 |
A216-WCB |
A315-CF8 |
A35-CF3 |
A351-CF8M |
A351-CF3M |
| 球體 |
B2-B8 |
A105-1025 |
A182-F304L |
A182-F304L |
A132-F316 |
A182-F316L |
| B8以上 |
A216-WCB |
A351-CF8M |
A351-CF3 |
A351-CF8M |
A351-CF3M |
| 閥桿 |
A182-F6a |
A182-F304 |
A182-F304L |
A182-F336 |
A182-F316L |
| 閥座 |
PTFE/增強PTFE/NYLIN PTFE/Reinforced PTFE/Nyion |
| 閥座支承圈 |
A105-1025 |
A182-F304 |
A182-F304L |
A182-F316 |
A182-F316L |
| 彈簧 |
|
3yc-7/17-49H |
| O形圈 |
NBR |
氟橡膠 |
| 螺柱 |
A193-B7 |
A193-B8 |
| 螺母 |
A194-2H |
A194-8
|
