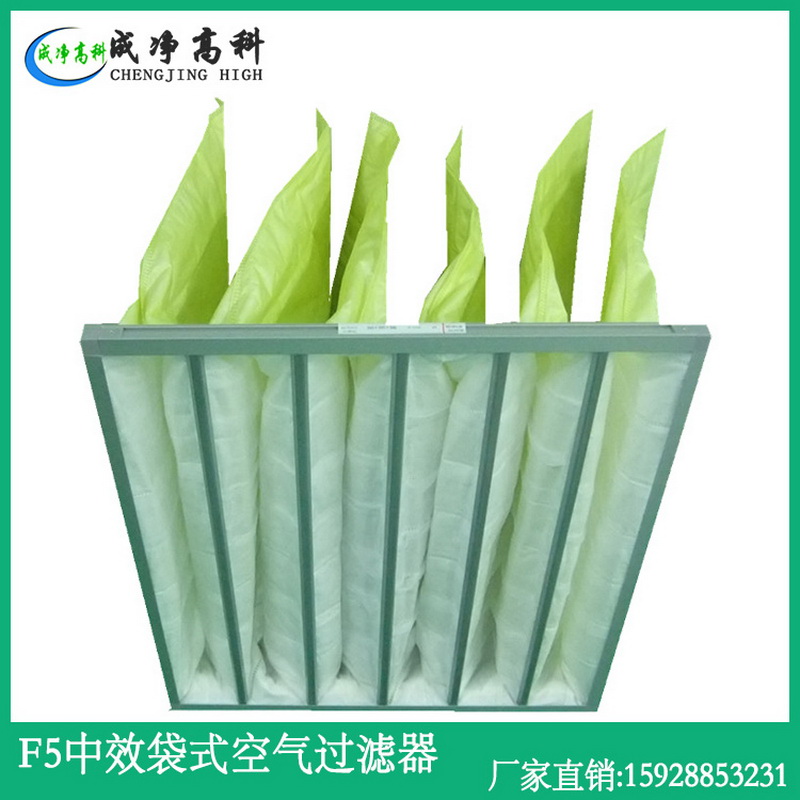

綠白棉初效袋式空氣過濾器重慶市初效空氣過濾器|重慶市中效空氣過濾器|重慶市高效空氣過濾器
Air filter bag filter early effect
特點Features
●可重復使用多次
●阻力小、風量大
●廣泛運用于空調系統的中級過濾
●Adopts reusable times
●Responding to small resistance, air
●Widely used in air conditioning system of intermediate filtration
構成材料及運行條件
Materials and operating conditions
●框材：鋁合金或鍍鋅板外框
●External frane：Aluminum alloy steel or frame
●濾料材質：新型復合無紡布
●Filter material: new composite nonwoven fabric
●濾料顏色：白色
●Liao color: white
●密封條：醋酸乙酯
●Gasket：EVA
●使用溫度、濕度：80℃、80%以內
●Use the highest temperature, humidity：80℃、80%
型號尺寸及其他參數
Standard specification
|
型號
model
|
外形尺寸
Outside Dimensions
(mm)
|
額定風量
Rated air flow
(m3/h)
|
初阻力
Initial resistance(Pa)
|
效率（級別）
Efficiency
(class)
|
濾料顏色
Liao color
|
袋數
pockets
|
|
CJ-S10-B1
|
495×295×500mm
20″×12″×20″
|
1500m3/h
|
25~35Pa
|
25-35% G3
35-45% G4
|
綠白棉
|
5
|
|
CJ-S10-B2
|
495×495×500mm
20″×20″×20″
|
2500m3/h
|
5
|
|
CJ-S10-B3
|
595×295×500mm
24″×12″×20″
|
2000m3/h
|
6
|
|
CJ-S10-B4
|
595×495×500mm
24″×20″×20″
|
3200m3/h
|
6
|
|
CJ-S10-B5
|
595×595×500mm
24″×24″×20″
|
3800m3/h
|
8
|
|
CJ-S10-B6
|
495×295×600mm
20″×12″×24″
|
1800m3/h
|
5
|
|
CJ-S10-B7
|
495×495×600mm
20″×20″×24″
|
3200m3/h
|
5
|
|
CJ-S10-B8
|
595×295×600mm
24″×12″×24″
|
2500m3/h
|
6
|
|
CJ-S10-B9
|
595×495×600mm
24″×20″×24″
|
4000m3/h
|
6
|
|
CJ-S10-B10
|
595×595×600mm
24″×24″×24″
|
4500m3/h
|
8
|
*可要據用戶要求定制不同規格型號的過濾器
According to user requirements to customize different specifications and types of filters
